Buffering Ring, Buffering Seals Introduction
Update:2016-03-23

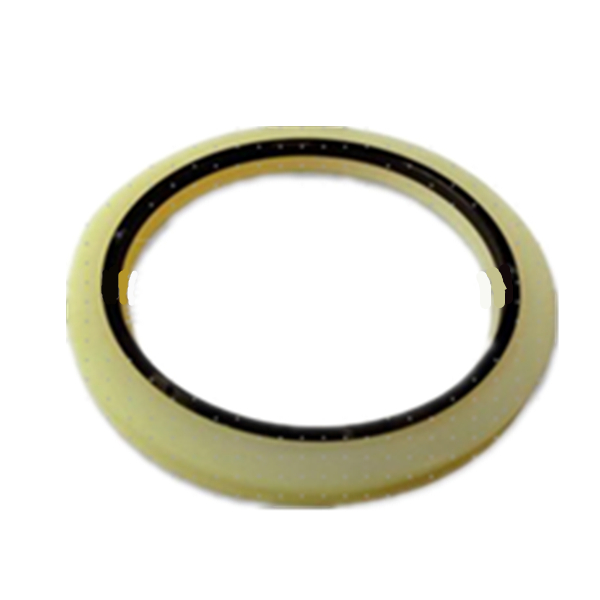

Buffering Ring, Buffering Seals
Pressure: 50 MPA
speed: 1.5 (m/s)temperature: -55/+120
Material: PTFE/ NBR/ FKM
Medium: Hydraulic oil, water,flame retardant, liquid gas
Material:O Ring(NBR,FKM), Slide Ring(PTFE+Bronze)
Standard or can fir the groove: HBTS
Metric groove size (mm):
Shaft diameter d f8:40~140
groove bottom diameter D +0.2:d+15.5\
L +0.2:6.3
H:5.9
O-ring diameter d1:5.3
R1≤:1.2
DSH Seals is a professionally managed ISO 9001:2008 General component parts and Seals manufacturer. Fur any future inquires or suggestion, feel free to contact DSH Seals team.
Thanks for your attention.
