Using performance and characteristics of V ring

Update:2018-09-27

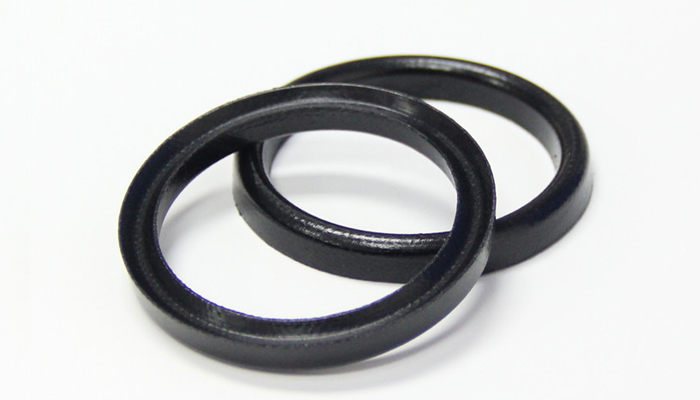

V ring is one of the all lip seals with long history. V ring is widely used. Compared with other lip seals, the main features of v ring:

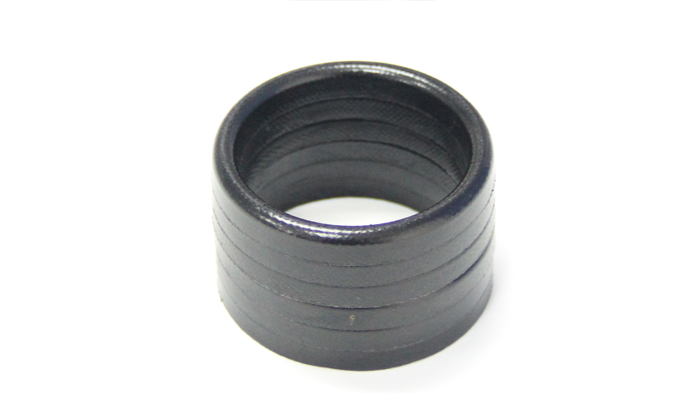

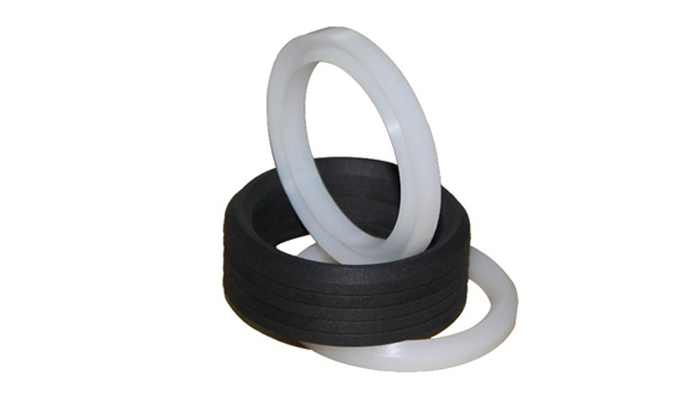

1. It can be used by overlap several pieces according to using pressure, sealing performance increases as the number of overlap pieces. However, it should be noted that this relationship is not straight; at the same time the frictional resistance also increases.

2. It has strong follow-up ability to the eccentric load and eccentric motion of the piston or piston rod, and the leakage prevention effect is very good.

3. If the leak occurs due to deformation or wear of the seal ring during use, it can be adjusted by the pressing mechanism and pressed again, so it can be used for a long time, and the seal is reliable and the service life is long.

4. It can be cut and assembled, easy to install and maintain, and suitable for places where it is difficult to replace the seal.

5. Can be used for low pressure (5MPa), low speed (3m / min) rotation.

6. No need to prevent extrusion when using under high pressure.

7. Frictional resistance is large, hard to adjust, large installation space.

High working pressure of V ring is more than 60MPa, Suitable working temperature: -30...80℃; Working speed: NBR V rings is 0.02-0.3m/s; Fabric V rings is 0.005-0.5m/s. It can be used for various forms of seals for high pressure hydraulic equipment, reciprocating pistons for hydraulic machines and piston rod movement.
