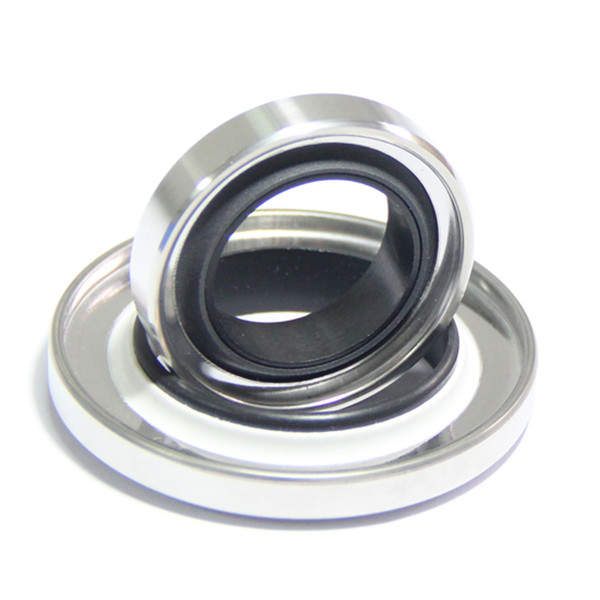

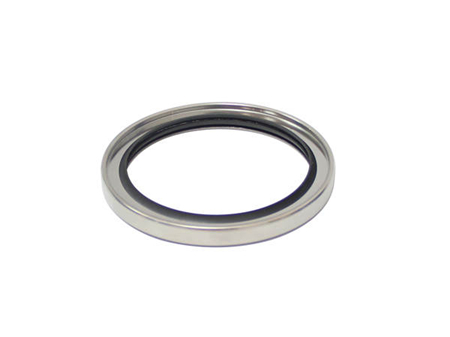

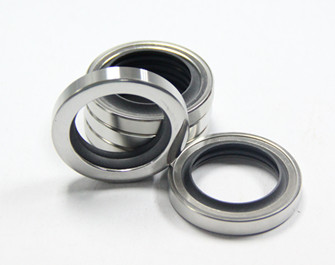

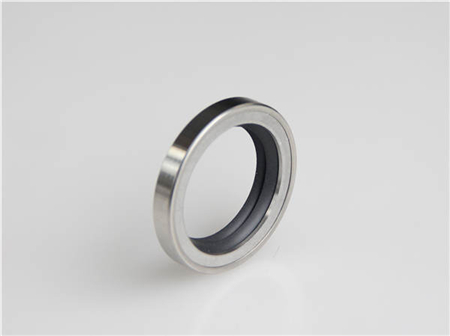

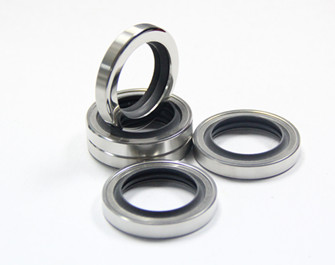

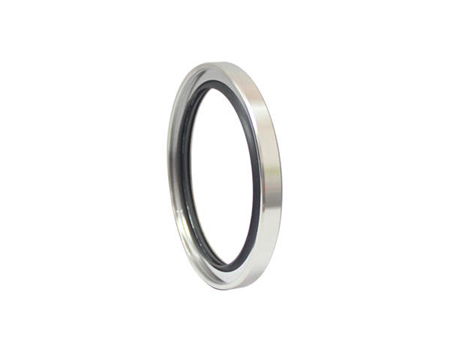

Double Lip PTFE Stainless Steel Oil Seals

Product Description

The PTFE lip seal is a rotary lip seal that features an ID lip that seals dynamically on a shaft and metal casing on its OD to seal statically press-fit into a bore. A gasket is sandwiched between layers of sealing lips and the can to seal off the potential leak path. Since the lip is not spring energized, the radial lip contact forces are lower than a rotary lip seal, which allows the seal to function at much higher surface speeds (up to 30m/s).

The seals are manufactured from a wide variety of PTFE composites and other machinable plastic materials. Standard gasket choices are fluorocarbon, nitrile. Metal is stainless steel. This broad foundation of standard gasket, metal and PTFE materials can be tailored to suit nearly all applications.

Applications

• Motors • Gear Boxes • Pumps • Bearings • Compressors • Cryogenics • Extruders • Valves • Blowers • Spindles • Robotics • Mixers

Markets

Aerospace • Automotive • Chemical Process • Appliances • Machine Tools • Marine • Medical • Pharmaceutical • Military • Heavy Machinery • Pulp & Paper • Hydraulic • Food Processing • Electronic • Oil & Gas • Steel Mill • Plastics

Stainless steel good chemical resistance properties up to 600 °F. resists corrosive media up to 400 °F.

Pictures

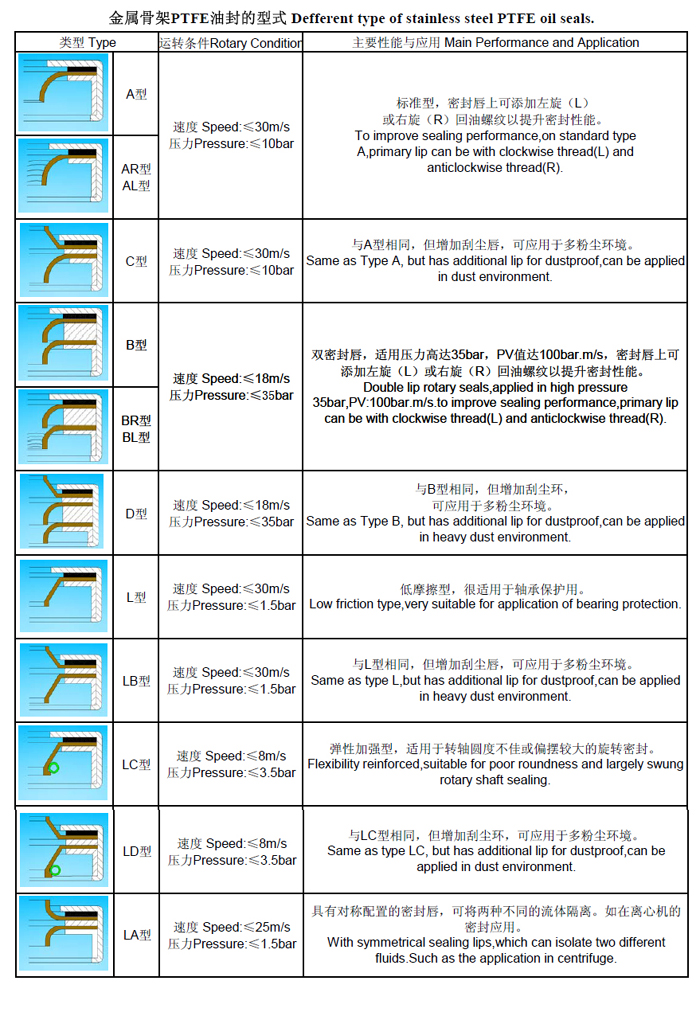

Type: BL

Material： PTFE + SS 304

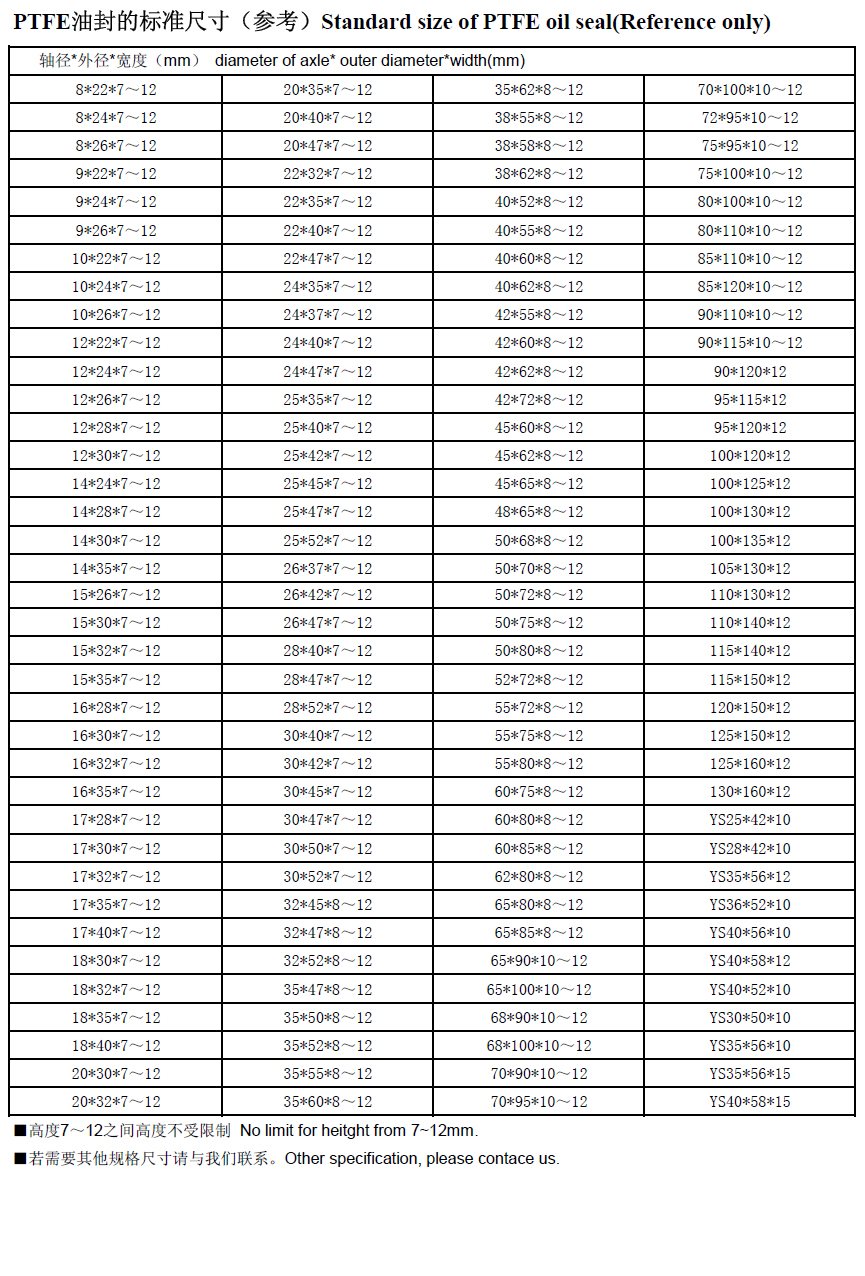

Size: 35*50*8 mm
