Product Series

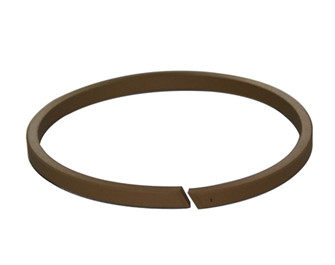

KZT
- Code:KZT
- Pressure≤(MPa)：-
- Speed≤(m/s)：1.5
- Temp.Range℃:-55/+220
- Material:PTFE filled bronze
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Excavators,Standard cylinders,Mobile hydraulics,Presses
Products:
| Technical Data | ||||
| Material | Pressure Pr: N/mm2(Max) | Temperature(℃) | Sliding speed(m/s) | Medium |
| PTFE |
15 @25℃ 12 @ 80℃ 8 @ 120℃ |
-55…+220 | 1.5 | Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |

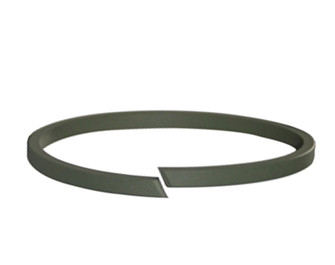

| Type of cut |
|
|
|
The Angle Cut is the most frequently used standard type of cut. Rings with Straight Cut are available on request. |
| Slot on hatch | ||
| With slot or without slot are providable. | ||
Order Example for standard version:
D=100 mm, d=92 mm, h=6 mm
Bore diameter D=100 mm, Groove diameter d=92 mm, product Width h=6 mm;
Order Code: KZT 100*92*6
For special design such as Special cut type, Slots on hatch , please indicate when ordering.

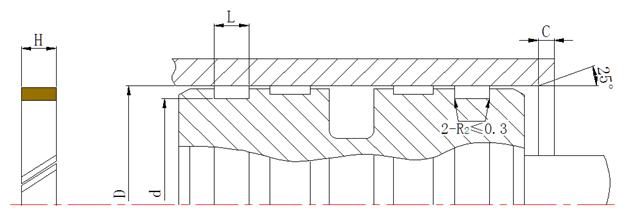

Installation Dimension table based on Metric Size
| D H9 | d -0.2 | L +0.2 | H |
| 20~60 | D-6 | 5.2 | 5 |
| 63~170 | D-8 | 6.2 | 6 |
| 100~190 | D-8 | 8 | 7.8 |
| 170~360 | D-8 | 8.2 | 8 |
| 80~190 | D-8 | 9.7 | 9.5 |
| 70~150 | D-8 | 15 | 14.8 |
