Product Series
HBTS
- Code:HBTS
- Pressure≤(MPa)：35
- Speed≤(m/s)：1.5
- Temp.Range℃:-55/+160
- Material:PTFE+NBR
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Excavators,Standard cylinders,Mobile hydraulics,Presses
| Technical Data | |||||||||||||||
| Pressure[Mpa] | Temperature(℃) | Sliding speed(m/s) | Medium | ||||||||||||
| Standard | 35 | -55…+160 | 1.5 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|||||||||||
| Material | Standard or can fit the groove | ||||||||||||||
| O ring | slide ring | HBTS | |||||||||||||
| Standard | NBR |
PTFE-Bronze |
|||||||||||||
| Standard（on request) | FKM | ||||||||||||||
Order Example for standard version:
Diameter d=100mm
Order Code HBTS 100*115.5*6.3

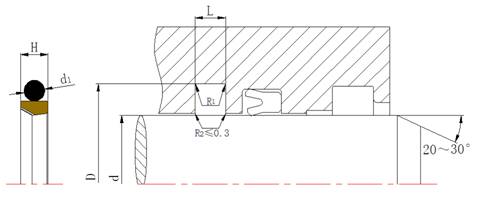

Installation Dimension table based on Metric Size
| d f8 | D +0.2 | L +0.2 | H | d1 | R1≤ | ||||||||||
| 40~140 | d+15.5 | 6.3 | 5.9 | 5.3 | 1.2 | ||||||||||
