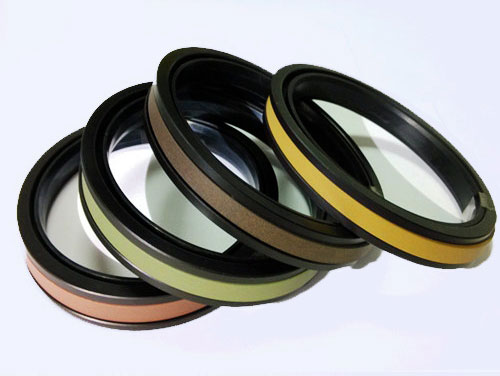

Product Series
HBY
- Code:HBY
- Pressure≤(MPa)：50
- Speed≤(m/s)：1
- Temp.Range℃:-55/+120
- Material:PU+POM
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Excavators,Standard cylinders,Mobile hydraulics,Presses
| Technical Data | |||||||||||||||
| Pressure[Mpa] | Temperature(℃) | Sliding speed(m/s) | Medium | ||||||||||||
| Standard | 50 | -55…+120 | 1 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|||||||||||
| Material | Standard or can fit the groove | ||||||||||||||
| Sealing Ring | Backup | HBY | |||||||||||||
| Standard | NBR/PU | POM | |||||||||||||
Order Example for standard version:
Diameter d=100mm
Order Code HBTS 100*115.5*6.3

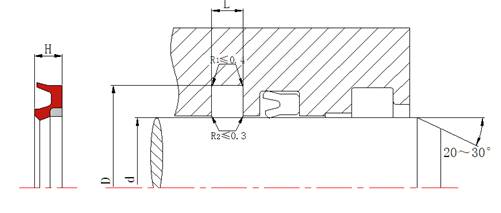

Installation Dimension table based on Metric Size
| d f8 | D +0.2 | L +0.2 | H | d1 | R1≤ | ||||||||||
| 40~140 | d+15.5 | 6.3 | 5.9 | 5.3 | 1.2 | ||||||||||
| d f8 | D+0.2 | L+0.2 | H | |||||||||||||
| 40~190 | d+16 | 6.3 | 6 | |||||||||||||
| 200~220 | d+21 | 8 | 7.7 | |||||||||||||
