Product Series

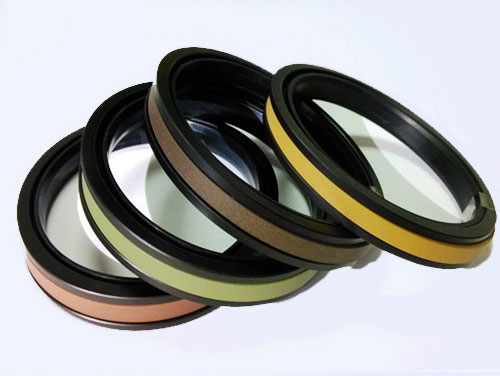

SPNS
- Code:SPNS
- Pressure≤(MPa)：35
- Speed≤(m/s)：1.5
- Temp.Range℃:-40/+160
- Material:PTFE+NBR
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Excavators,Standard cylinders,Mobile hydraulics,Presses
| Technical Data | |||||||||||||||
| Pressure[Mpa] | Temperature(℃) | Sliding speed(m/s) | Medium | ||||||||||||
| Standard | 35 | -30…+160 | 1.5 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|||||||||||
| Material | Standard or can fit the groove | |||||||||||||
| O ring | slide ring | SPNS | ||||||||||||
| Standard | NBR |
PTFE-Bronze |
||||||||||||
|
Standard (on request) |
FKM |
PTFE-carbon |
||||||||||||
Order Example for standard version:
Diameter d=100mm
Order Code HBTS 100*115.5*6.3

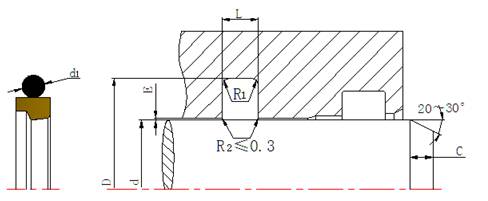

Installation Dimension table based on Metric Size
| h f8 | D H9 | L+0.2 | H | d1 | R1≤ | C≥ | ||||||||
| 4~18 | d+4.9 | 2.2 | 2 | 1.8 | 0.4 | 3.5 | ||||||||
| 8~36 | d+7.3 | 3.2 | 2.9 | 2.62 | 0.4 | 4.5 | ||||||||
| 20~60 | d+10.7 | 4.2 | 3.9 | 3.55 | 0.8 | 5.5 | ||||||||
| 40~180 | d+15.1 | 6.3 | 5.9 | 5.3 | 1.2 | 7 | ||||||||
