Product Series

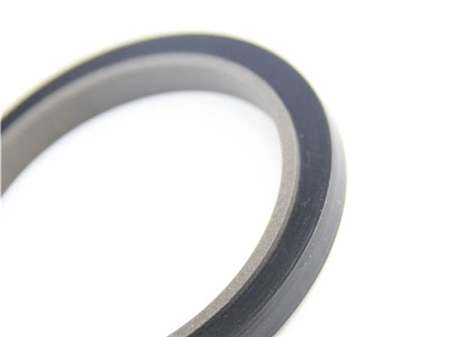

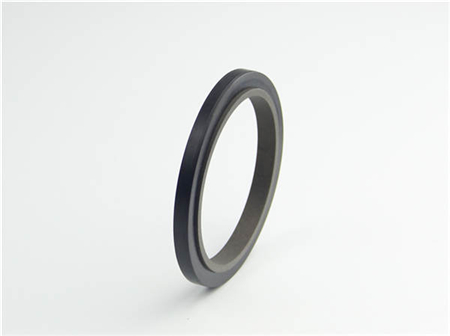

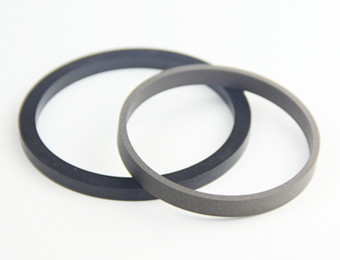

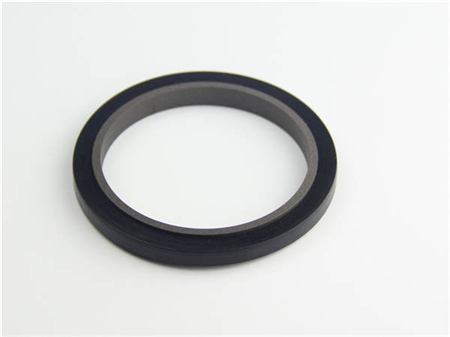

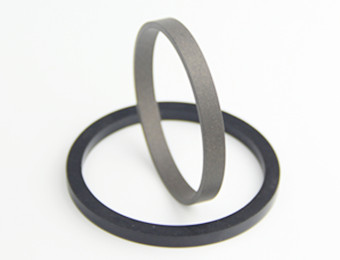

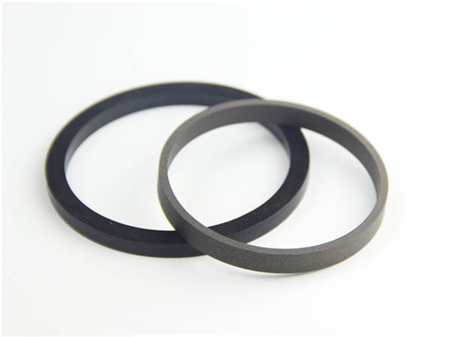

SPN
- Code:SPN
- Pressure≤(MPa)：35
- Speed≤(m/s)：1.5
- Temp.Range℃:-40/+160
- Material:PTFE+NBR
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Excavators,Standard cylinders,Mobile hydraulics,Presses
| Technical Data | |||||||||||||||
| Pressure[Mpa] | Temperature(℃) | Sliding speed(m/s) | Medium | ||||||||||||
| Standard | 35 | -40…+160 | 1.5 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|||||||||||
| Material | Standard or can fit the groove | ||||||||||||
| Elastomer | slide ring | SPN | |||||||||||
| Standard | NBR |
PTFE-Bronze |
|||||||||||
|
Standard (on request) |
FKM |
PTFE-carbon |
|||||||||||
| pressure | 160bar | 250bar | 400bar | ||||||||||
| Max Gap E | E≤0.6mm | E≤0.4mm | E≤0.2mm | ||||||||||
Order Example for standard version:
Diameter d=100mm
Order Code HBTS 100*115.5*6.3

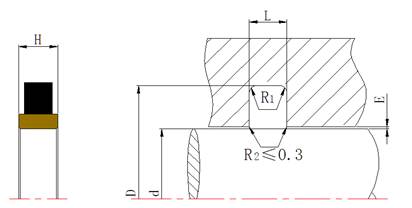

Installation Dimension table based on Metric Size
| d f8 | D +0.2 | L +0.2 | H | R1≤ | |||||||||
| 18~31.5 | d+9 | 4.5 | 4.3 | 0.8 | |||||||||
| 40~80 | d+13 | 7.5 | 7.3 | 1.2 | |||||||||
| 90~140 | d+13.4 | 7.5 | 7.3 | 1.2 | |||||||||
