Product Series

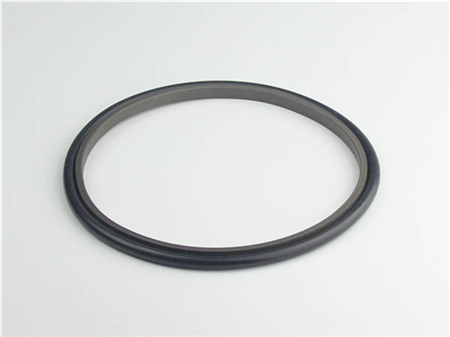

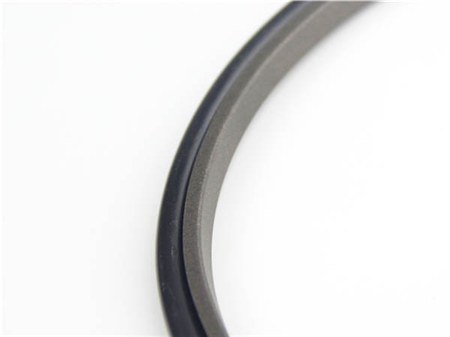

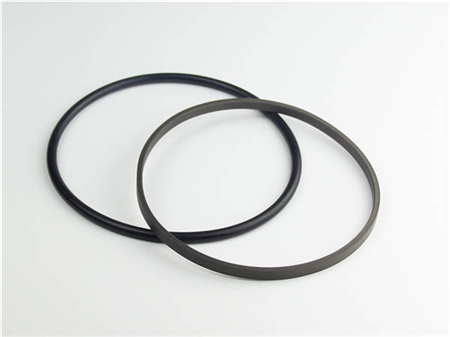

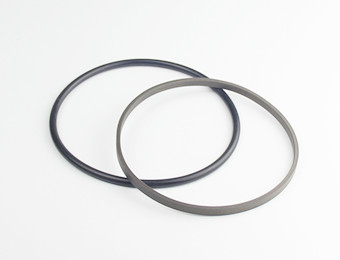

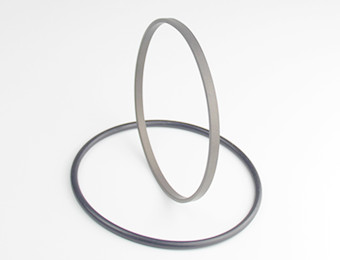

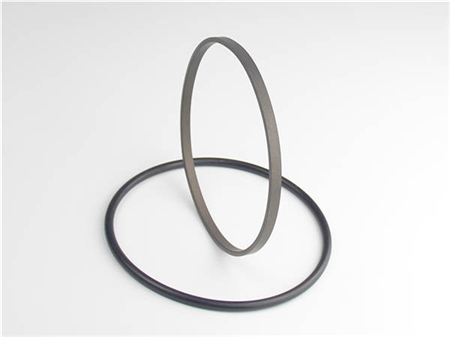

SPNO
- Code:SPNO
- Pressure≤(MPa)：35
- Speed≤(m/s)：1.5
- Temp.Range℃:-30/+160
- Material:PTFE+NBR
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Excavators,Standard cylinders,Mobile hydraulics,Presses
| Technical Data | |||||||||||||||
| Pressure[Mpa] | Temperature(℃) | Sliding speed(m/s) | Medium | ||||||||||||
| Standard | 35 | -30…+160 | 1.5 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|||||||||||
| Material | Standard or can fit the groove | ||||||||||||
| Elastomer | slide ring | SPNO | |||||||||||
| Standard | NBR |
PTFE-Bronze |
|||||||||||
|
Standard (on request) |
FKM |
PTFE-carbon |
|||||||||||
| pressure | 160bar | 250bar | 400bar | ||||||||||
| Max Gap E | E≤0.6mm | E≤0.4mm | E≤0.2mm | ||||||||||
Order Example for standard version:
Diameter d=100mm
Order Code HBTS 100*115.5*6.3

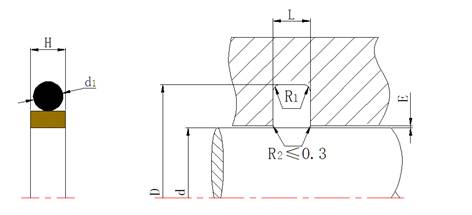

Installation Dimension table based on Metric Size
| d f8 | D+0.2 | L+0.2 | H | d1 | R1≤ | ||||||||||
| 12~20 | d+6 | 3.2 | 3 | 2.62 | 0.4 | ||||||||||
| 22~45 | d+9 | 4 | 3.8 | 3.53 | 0.8 | ||||||||||
| 50~145 | d+15 | 6.5 | 6.3 | 5.3 | 1.2 | ||||||||||
| 150~380 | d+20 | 10 | 9.8 | 8.6 | 1 | ||||||||||
