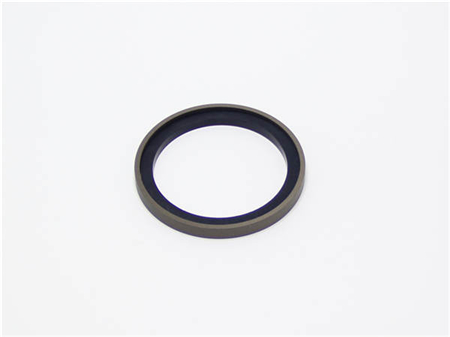

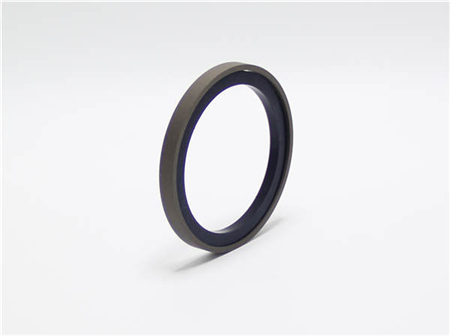

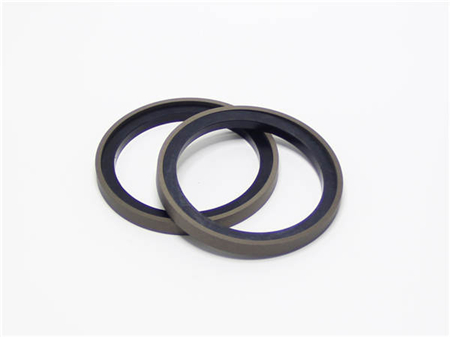

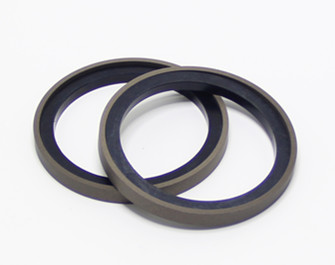

SPG
- Code:SPG
- Pressure≤(MPa)：35
- Speed≤(m/s)：2
- Temp.Range℃:-40/+160

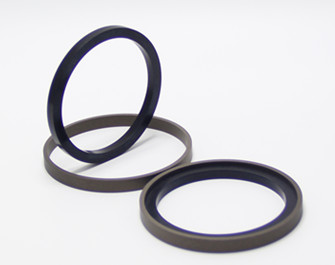

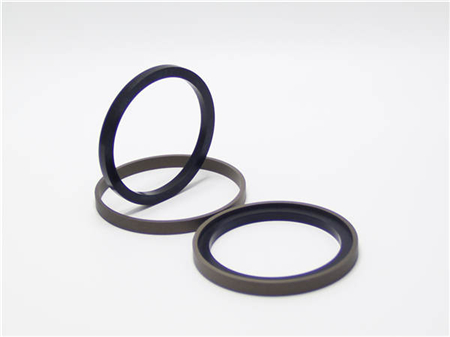

- Material:PTFE+NBR
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Excavators,Standard cylinders,Mobile hydraulics,Presses
Products.
| Technical Data | |||||||||||||||
| Pressure[Mpa] | Temperature(℃) | Sliding speed(m/s) | Medium | ||||||||||||
| Standard | 35 | -40…+160 | 1.5 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|||||||||||
| Material | Standard or can fit the groove | ||||||||||||
| Elastomer | slide ring | SPG | |||||||||||
| Standard | NBR |
PTFE-Bronze |
|||||||||||
|
Standard (on request) |
FKM |
PTFE-carbon |
|||||||||||
| pressure | 160bar | 250bar | 400bar | ||||||||||
| Max Gap E | E≤0.6mm | E≤0.4mm | E≤0.2mm | ||||||||||
Order Example for standard version:
Diameter d=100mm
Order Code HBTS 100*115.5*6.3

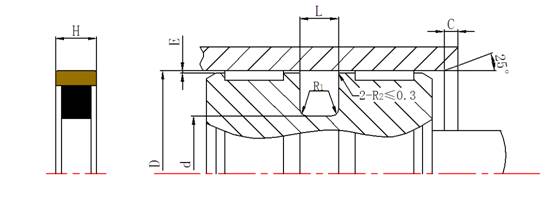

Installation Dimension table based on Metric Size
| D H9 | d -0.2 | L+0.2 | H | R1≤ | C≥ | ||||||||||
| 30~60 | D-9.5 | 4.5 | 4.3 | 0.8 | 3 | ||||||||||
| 63~160 | D-15 | 7.5 | 7.3 | 1.2 | 5 | ||||||||||
| 170~250 | D-22 | 11 | 10.8 | 1.6 | 5 | ||||||||||
| 260~400 | D-24 | 12 | 11.7 | 1.6 | 7 | ||||||||||
| 485~900 | D-30 | 15 | 14.8 | 2 | 7.5 | ||||||||||
| 930~1500 | D-40 | 20 | 19.7 | 2 | 7.5 | ||||||||||
