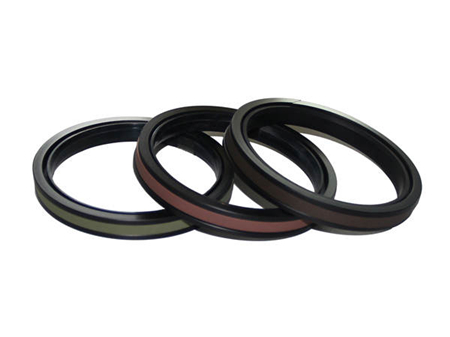

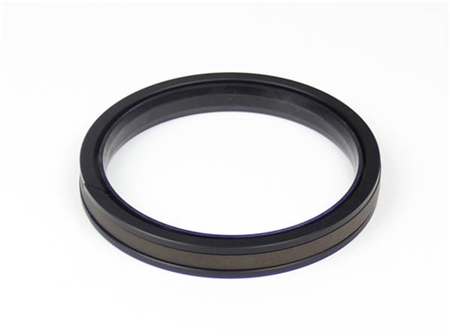

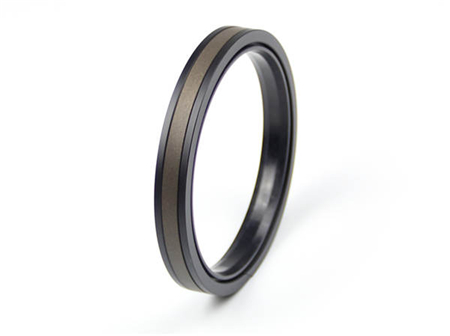

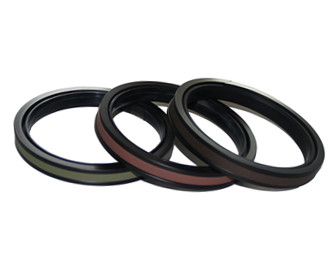

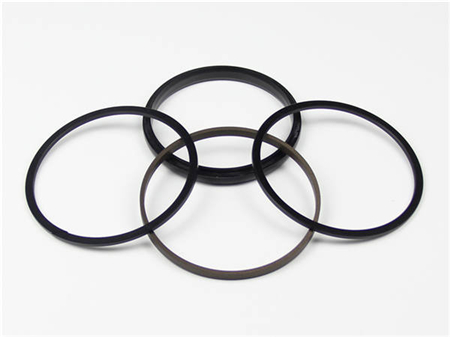

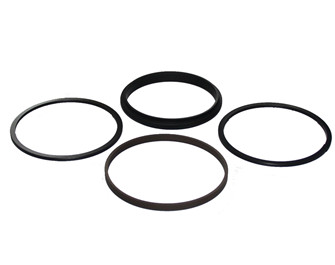

SPGW
- Code:SPGW
- Pressure≤(MPa)：50
- Speed≤(m/s)：1.5
- Temp.Range℃:-40/+160
- Material:PTFE+NBR+POM
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Excavators,Standard cylinders,Mobile hydraulics,Presses
Products.
| SPGO series also can be supplied with the following dimensions and type. |
|
Chamfer type The standard type SPGO@DSH has small chamfer on both edges. More chamfer type - no chamfer and wide chamfer are available on request. |
|
|
|
|
|
Standard(small) chamfer |
No chamfer |
Wide chamfer |
|
Angle slots on side face The standard type SPGO@ DSH doesn't have slots on side face. More slot type-Angle slots and Straight slots on both side face type are available on request. |
Order Example for standard version:
Diameter d=100mm
Order Code HBTS 100*115.5*6.3

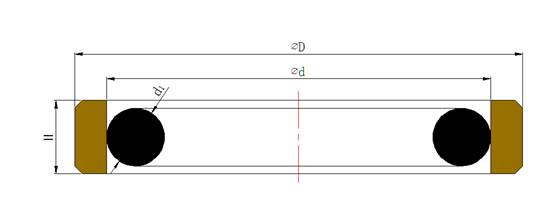

Installation Dimension table based on Metric Size
| D | d | H | d1 | ||||||||||||
| 7～55 | D-2 | 2 | 1.8 | ||||||||||||
| 80～200 | D-7 | 6 | 5.3 | ||||||||||||
| 80～200 | D-9.8 | 7.9 | 7 | ||||||||||||
| 100～200 | D-10 | 9.5 | 8.6 | ||||||||||||
| Technical Data | |||||||||||||||
| Pressure[Mpa] | Temperature(℃) | Sliding speed(m/s) | Medium | ||||||||||||
| Standard | 50 | -40…+160 | 1.5 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|||||||||||
| Material | Standard or can fit the groove | |||||||||||||
| Elastomer | slide ring | Backup ring | SPGW | |||||||||||
| Standard | NBR/PU80 |
PTFE-Bronze |
P0M | |||||||||||
|
Standard (on request) |
FKM |
PTFE-carbon |
PTFE | |||||||||||
| pressure | 160bar | 250bar | 400bar | 500bar | ||||||||||
| Max Gap E | E≤1.0mm | E≤0.8mm | E≤0.6mm | E≤0.4mm | ||||||||||
Order Example for standard version:
Diameter d=100mm
Order Code HBTS 100*115.5*6.3

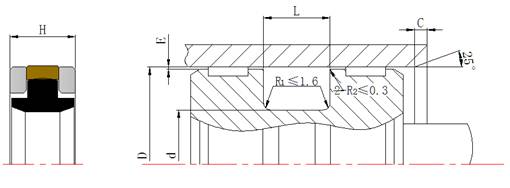

Installation Dimension table based on Metric Size
| D H9 | d h9 | L+0.2 | H | C≥ | |||||||||||
| 50~60 | D-14 | 9 | 8.5 | 4 | |||||||||||
| 65~95 | D-15 | 11 | 10.5 | 4 | |||||||||||
| 100~120 | D-15 | 12.5 | 12 | 4 | |||||||||||
| 125~240 | D-23 | 16 | 15.5 | 6 | |||||||||||
| 250~320 | D-28 | 17.5 | 17 | 7.5 | |||||||||||
