Product Series

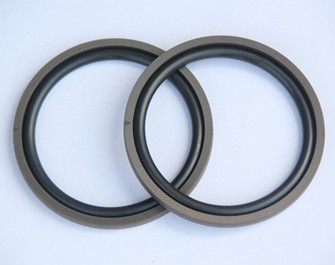

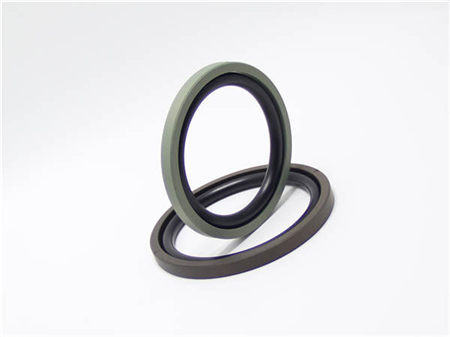

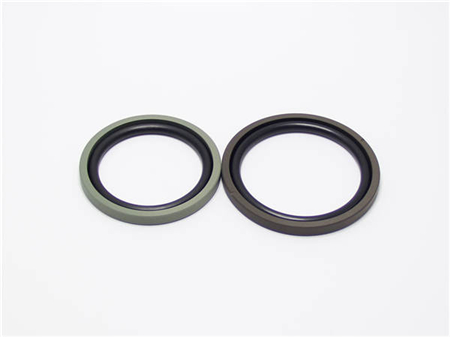

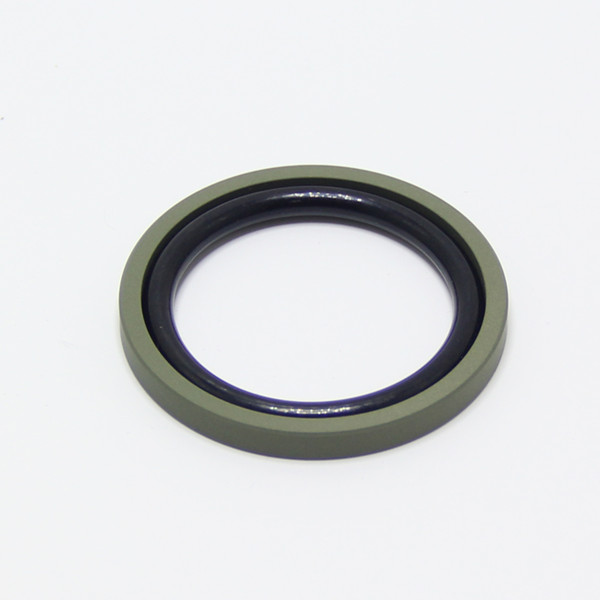

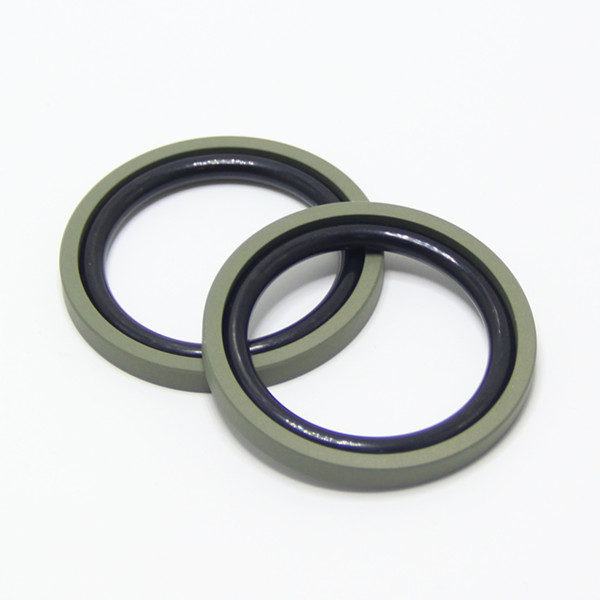

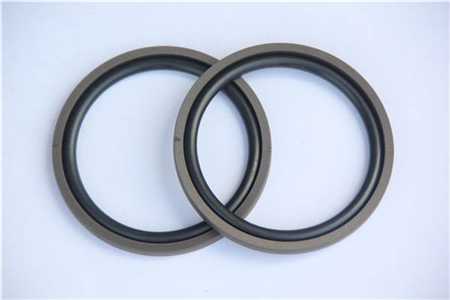

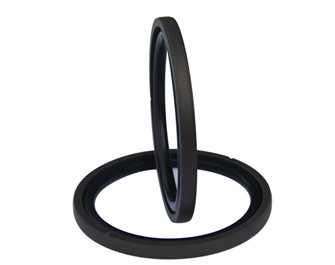

SPGO
- Code:SPGO
- Pressure≤(MPa)：35
- Speed≤(m/s)：1.5
- Temp.Range℃:-30/+160
- Material:PTFE+NBR
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Excavators,Standard cylinders,Mobile hydraulics,Presses
Products.
| Technical Data | |||||||||||||||
| Pressure[Mpa] | Temperature(℃) | Sliding speed(m/s) | Medium | ||||||||||||
| Standard | 35 | -35…+160 | 1.5 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|||||||||||
| Material | Standard or can fit the groove | ||||||||||||||
| O ring | slide ring | SPGO | |||||||||||||
| Standard | NBR |
PTFE-Bronze |
|||||||||||||
| Standard | FKM |
PTFE-carbon |
|||||||||||||
| pressure | 160bar | 250bar | 400bar | ||||||||||
| Max Gap E | E≤0.6mm | E≤0.4mm | E≤0.2mm | ||||||||||
Order Example for standard version:
Diameter d=100mm
Order Code HBTS 100*115.5*6.3

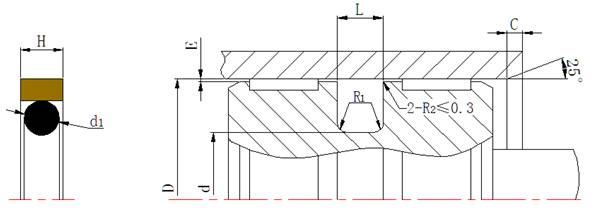

Installation Dimension table based on Metric Size
| D H9 | d -0.2 | H | L+0.2 | d1 | R1≤ | ||||||||||
| 20~50 | D-6 | 3 | 3.2 | 2.62 | 0.4 | ||||||||||
| 30~60 | D-8.5 | 3.8 | 4 | 3.55 | 0.8 | ||||||||||
| 63~160 | D-14 | 6.3 | 6.5 | 5.3 | 1.2 | ||||||||||
| 170~400 | D-20 | 9.8 | 10 | 8.6 | 1.6 | ||||||||||
