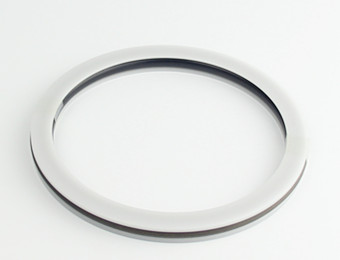

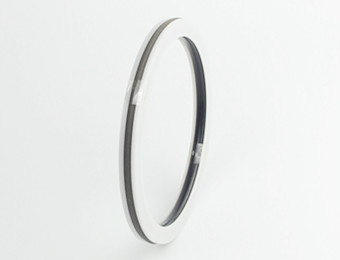

DRDA
- Code:DRDA
- Pressure≤(MPa)：30
- Speed≤(m/s)：0.5
- Temp.Range℃:-35/+200
- Material:PTFE+NBR+POM
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Rotary distributors,Pivoting motors, Mobile hydraulics,Machine tools
| Technical Data | |||||||||||||||
| Pressure[Mpa] | Temperature(℃) | Sliding speed(m/s) | Medium | ||||||||||||
| Standard | 30 | -35…+200 | 0.5 | Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. | |||||||||||
| Material | Standard or can fit the groove | |||||||||||||||
| O ring | slide ring | support ring | RDA | |||||||||||||
| Standard | NBR | PTFE-Bronze | POM | |||||||||||||
| Standard | FKM | PTFE-carbon | PTFE | |||||||||||||
Order Example for standard version:
Diameter d=100mm
Order Code DRDA 100*84*8
Installation Dimension table based on Metric Size
| D H8 | d h9 | H | L | |||||||||||||
| 50~120 | D-16 | 7.5 | 8 | |||||||||||||
| 125~190 | D-20 | 9.5 | 10 | |||||||||||||
| 200~600 | D-26 | 12.5 | 13 | |||||||||||||
