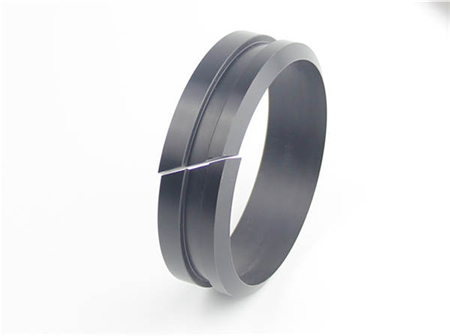

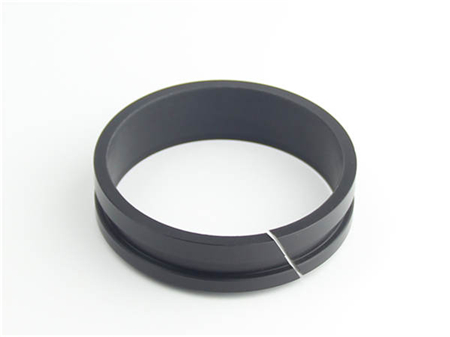

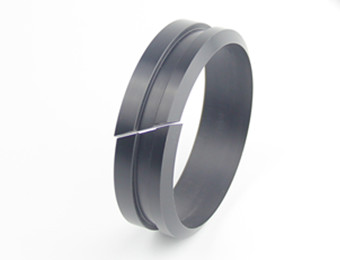

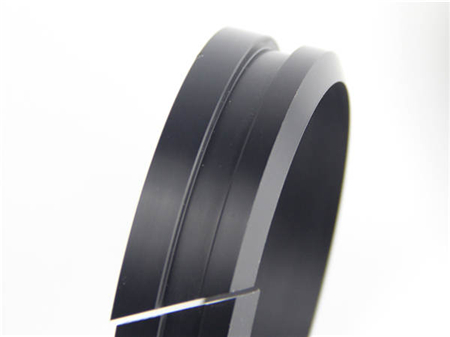

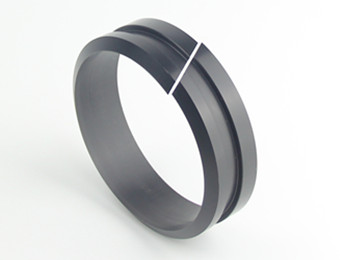

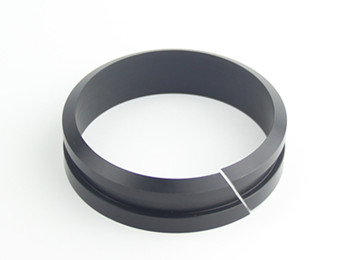

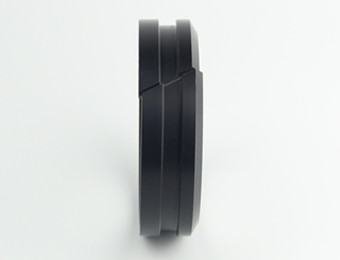

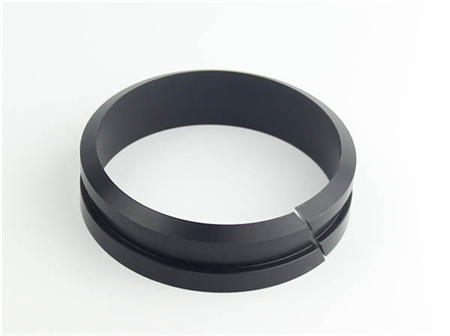

DFAI
- Code:DFAI
- Speed≤(m/s)：3
- Temp.Range℃:-55/+225
- Material:PTFE filled bronze/POM/PA
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Use in all hydraulic cylinders
Guide elements - DFAI products:
| Technical Data | |||||||||||||||
| Pressure[Mpa] | Temperature(℃) | Sliding speed(m/s) | Medium | ||||||||||||
| Standard | -55…+225 | 3 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
||||||||||||
| Material | Standard or can fit the groove | ||||||||||||||
| Standard |
POM/PTFE-Bronze |
FAI | |||||||||||||
|
Special (on request) |
POM / PA | ||||||||||||||
Order Example for standard version:
Diameter d=100mm
Order Code DFAI 100*110*24

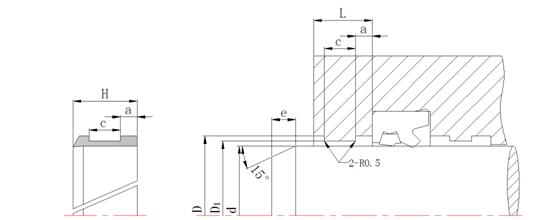

Installation Dimension table based on Metric Size
| D H9 |
d h9 |
L +0.2 |
d1 |
R≤ | C≥ | Max Gap E | ||||||||||
| 100bar | 200bar | 300bar | ||||||||||||||
| 8~39 | D-4.9 | 2.2 | 1.8 | 0.4 | 2 | 0.15 | 0.1 | 0.05 | ||||||||
| 40~79 | D-7.5 | 3.2 | 2.65 | 0.6 | 2.5 | 0.2 | 0.15 | 0.1 | ||||||||
| 80~132 | D-11 | 4.2 | 3.55 | 1 | 3.5 | 0.25 | 0.2 | 0.15 | ||||||||
| 140~329 | D-15.5 | 6.3 | 5.3 | 1.3 | 5 | 0.3 | 0.25 | 0.2 | ||||||||
| 330~669 | D-21 | 8.1 | 7 | 1.8 | 6.5 | 0.45 | 0.3 | 0.25 | ||||||||
| 670~999 | D-28 | 9.5 | 8.6 | 2.5 | 7.5 | 0.45 | 0.3 | 0.25 | ||||||||
