Product Series

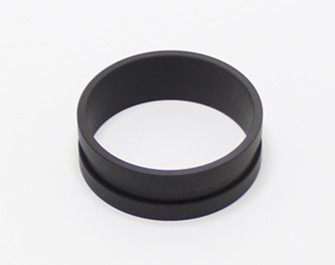

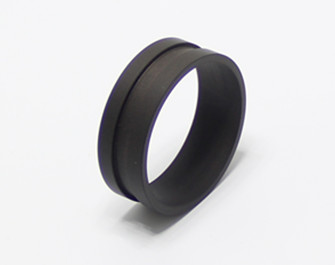

DFI
- Code:DFI
- Speed≤(m/s)：3
- Temp.Range℃:-55/+225
- Material:PTFE filled bronze/POM/PA
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Use in all hydraulic cylinders
Products.
| Technical Data | |||||||||||||||
| Pressure[Mpa] | Temperature(℃) | Sliding speed(m/s) | Medium | ||||||||||||
| Standard | -55…+225 | 3 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
||||||||||||
| Material | Standard or can fit the groove | ||||||||||||||
| Standard |
POM/PTFE-Bronze |
FI | |||||||||||||
|
Special (on request) |
POM / PA | ||||||||||||||
Order Example for standard version:
Diameter d=100mm
Order Code DFI 100*110*24

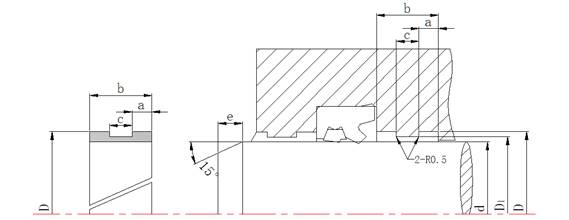

Installation Dimension table based on Metric Size
| d e8 | D H9 | D1 H9 | b D10 | c d10 | a D10 | |||||||||
| 22~56 | d+6 | d+3 | 19 | 6 | 6.5 | |||||||||
| 60~145 | d+10 | d+5 | 24 | 7 | 8.5 | |||||||||
| 150~950 | d+12 | d+6 | 35 | 15 | 10 | |||||||||
