Product Series

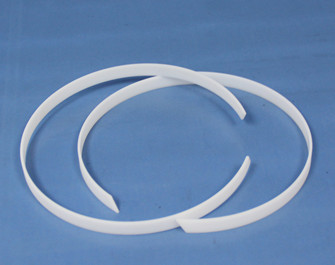

DST1
- Code:DST1
- Speed≤(m/s)：15
- Temp.Range℃:-60/+260
- Material:PTFE
- Medium:Mineral oil based hydraulic fluids,barely flammable hydraulic fluids,water air and others.
- Application:Mobile hydraulics, Standard cylinders, Pneumatics, Injection moulding machine, Presses
DSH Seals, Wear strips Products.
| Technical Data | |||||||||||||||
|
Material |
P ressure Pr:N/m㎡ |
Temperature(℃)* |
Slidingspeed(m/s) |
Medium | |||||||||||
| PTFE |
15@25℃ 12@80℃ 8@120℃ |
-60…+260 | 15 | Mineral oil based hydraulic fluids,barely flammable hydraulic fluids,water air and others. | |||||||||||
| UHMW-PE |
25@25℃ 10@80℃ |
-160…+100 | 2 | Mineral oil based hydraulic fluids,barely flammable hydraulic fluids,water air and others. | |||||||||||
| HG |
100@25℃ 50>60℃ |
-60…+120 | 1 | Mineral oil based hydraulic fluids,barely flammable hydraulic fluids,water air and others. | |||||||||||
PTFE=Polytetrafluoroethylene
UHMW-PE=(Utra High Molecular Weight Polyethylene)
HG=Phenolic Resin with Fabric Reinforcement
|
With increasing temperatures, the permissible surface pressure of PTFE material will be decreased, its bearing capacity actually depends on the operating temperature. This should therefore generally not exceed 150℃. For temperature below 0℃, please consult technical support. |
|
ISO 10766 GB/T 15242.2 |
|

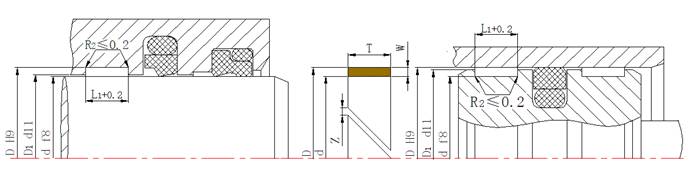

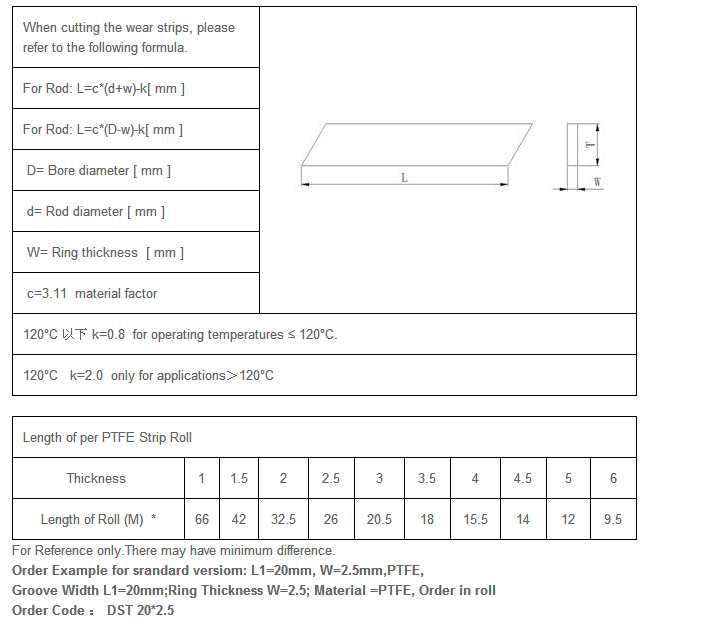

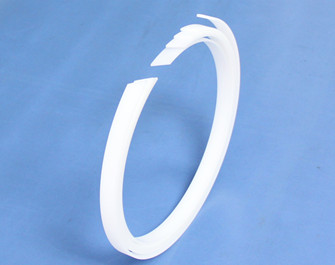

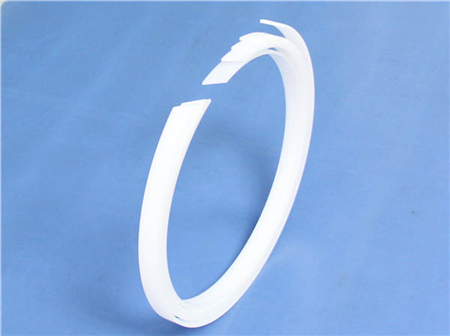

After installation the guide ring with pre-cut, it will leave a certain "Z" gap, it based on the following reason: -Affected by the temperature, guide ring has linear expansion -Avoidance of entrained pressure |
