Product Series

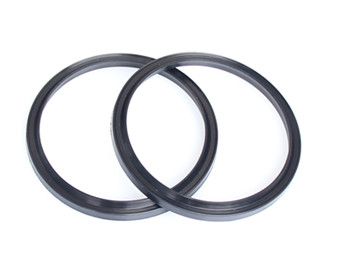

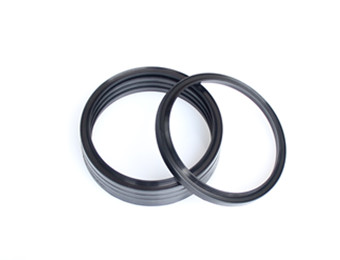

DBH
- Code:DBH
- Speed≤(m/s)：1
- Temp.Range℃:-25/+120
- Material:NBR/PU/FKM
- Medium:ISO 6195/C DA22 LBH
- Application:Industrial hydraulic Machine tools Presses
Scraper Seals, DSH Seals product code, DBH Seals.
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
-25…+120 | 1 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|
|
Material |
Standard or can fit the groove |
||
|
Standard |
NBR | ISO 6195/C | |
|
Standard |
FKM | LBH | |
Order Example for standard version:
Diameter d=100mm
Order Code DBH 100*110*7

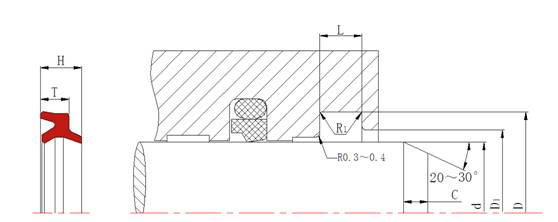

Installation Dimension table based on Metric Size
| d h9 | D H9 | L±0.2 | T | H | D1 | a | R1≤ | C≥ |
| 20~28 | d+8 | 6 | 4.5 | 5 | d+4.3 | 2 | 0.4 | 5 |
| 30~67 | d+8 | 6.5 | 5 | 6 | d+4 | 2 | 0.4 | 5 |
| 70~118 | d+10 | 8 | 6 | 7 | d+5 | 3 | 0.4 | 5 |
| 120~250 | d+13 | 9.5 | 7 | 8 | d+7 | 3 | 0.4 | 5 |
| 240~500 | d+16 | 13 | 10 | 11 | d+8 | 4 | 0.8 | 7 |
