Product Series

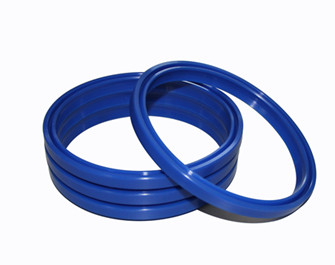

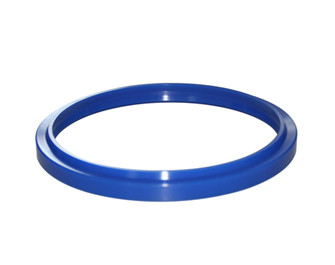

DAH
- Code:DAH
- Speed≤(m/s)：1
- Temp.Range℃:-25/+120
- Material:PU
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Industrial hydraulic,Machine tools, Presses
Products.
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
-25…+120 | 1 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|
|
Material |
Standard or can fit the groove |
||
|
Standard |
PU | DHS,DSH | |
|
Standard |
FKM | DA22 | |
Order Example for standard version:
Diameter d=100mm
Order Code DBH 100*110*7

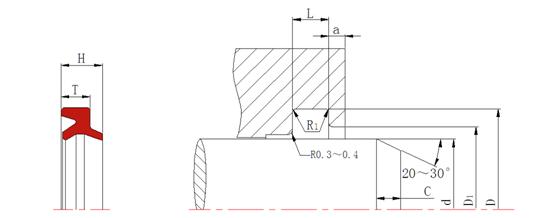

Installation Dimension table based on Metric Size
| d h9 | D H9 | L+0.2 | D1 | H | T | R1≤ | C≥ |
| 20~28 | d+8 | 5 | d+4.3 | 6 | 4.5 | 0.4 | 5 |
| 30~67 | d+8 | 6 | d+4 | 6.5 | 5 | 0.4 | 5 |
| 70~112 | d+10 | 7 | d+5 | 8 | 6 | 0.4 | 5 |
| 125~230 | d+14 | 8 | d+7 | 9.5 | 7 | 0.4 | 7 |
