Product Series

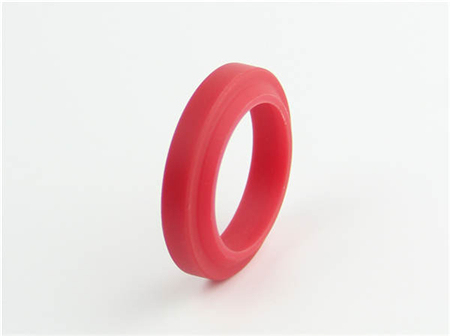

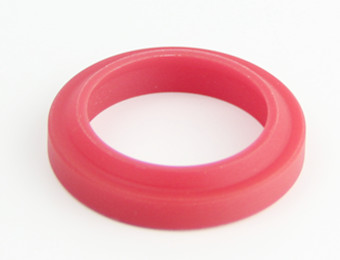

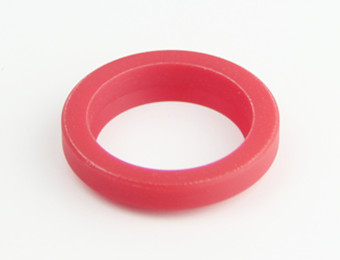

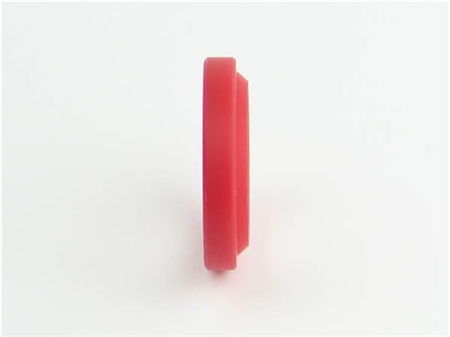

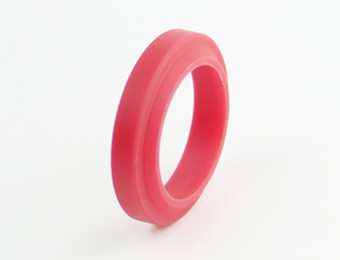

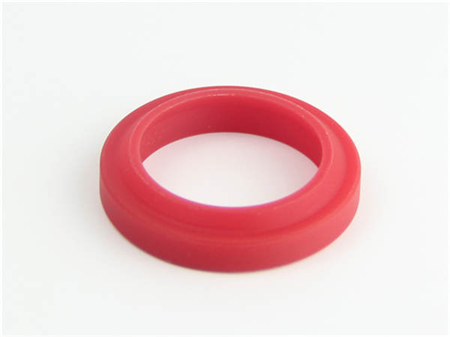

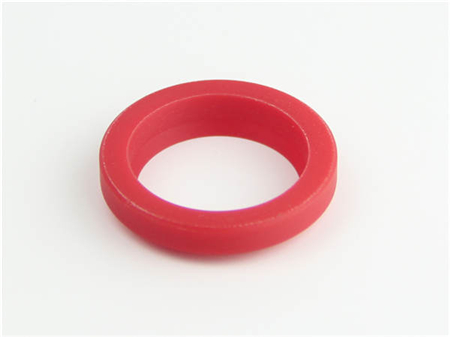

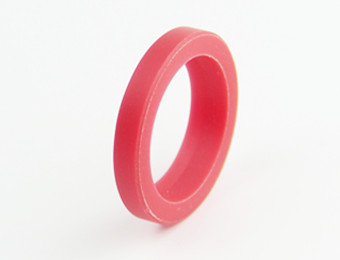

DAI
- Code:DAI
- Speed≤(m/s)：1
- Temp.Range℃:-30/+100
- Material:PU
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Industrial, hydraulic Machine tools, Presses
Scraper Seals, DSH Seals product code, DAI Seals
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
-35…+100 | 1 |
Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water,air and others. |
|
| Material |
Standard or can fit the groove |
||
| Standard | NBR/PU | P6，A5 ，WRM | |
Order Example for standard version:
Diameter D=100mm
Order Code DAI 100*112.2*7.2
Installation Dimension table based on Metric Size
| d h9 | D H9 | L +0.2 | D1 h11 | H | R1≤ | C≥ |
| 16~70 | d+8.6 | 5.3 | d+3 | 7 | 0.4 | 5 |
| 75~120 | d+12.2 | 7.2 | d+6 | 12 | 0.4 | 5 |
| 125~160 | d+15 | 10.2 | d+7.6 | 16 | 0.4 | 7 |
| 180~500 | d+20 | 10.2 | d+10 | 18 | 0.8 | 7.5 |
| 510~530 | d+30 | 15.2 | d+15 | 25 | 0.8 | 8 |
| 555~900 | d+25 | 12.7 | d+12.6 | 20 | 0.8 | 7.5 |
