Product Series

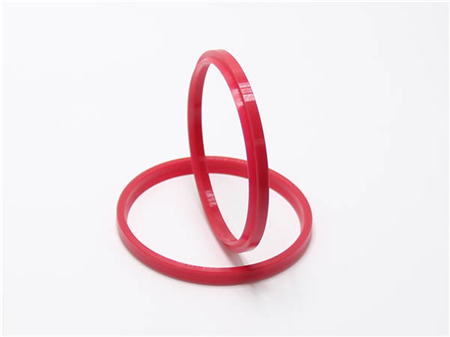

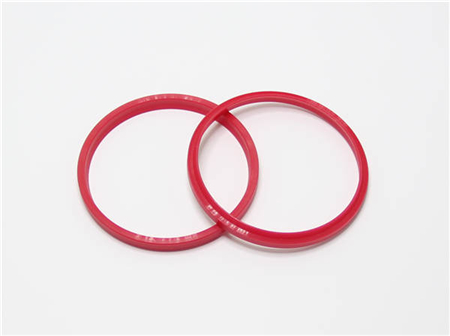

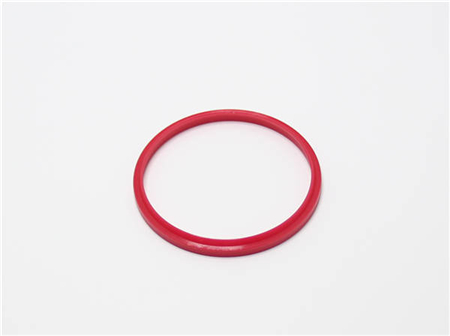

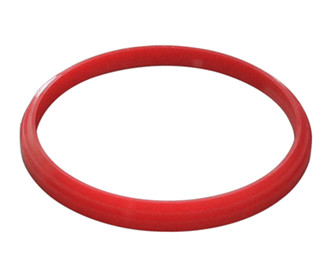

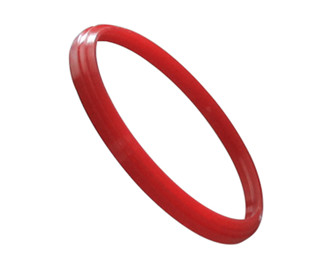

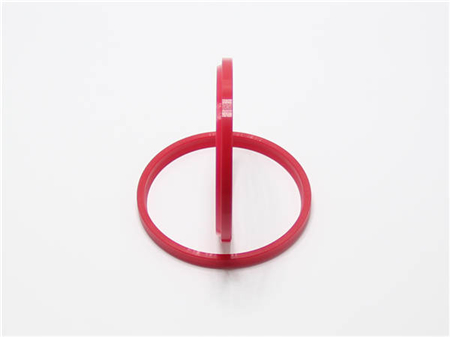

DAM
- Code:DAM
- Speed≤(m/s)：1
- Temp.Range℃:-30/+100
- Material:PU
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Industrial,hydraulic Machine tools, Presses
Products.
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
-30…+110 | 1 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|
|
Material |
Standard or can fit the groove |
||
|
Standard |
NBR/PU（Shore A 90） | DA17 P8 | |
Order Example for standard version:
Order Code DAM 100*108*6

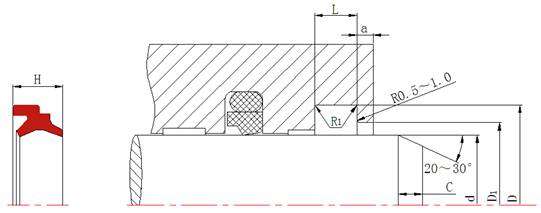

Installation Dimension table based on Metric Size
|
d h9 |
D H9 |
L+0.2 |
D1 | a min | H | C≥ |
| 20～100 | d+8 | 6 | d+3.5 | 2 | 8 | 5 |
| 105～200 | d+12 | 8.2 | d+5 | 3 | 11 | 5 |
| 205～440 | d+15 | 9.5 | d+7 | 3 | 13 | 7 |
