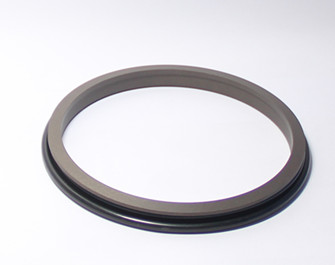

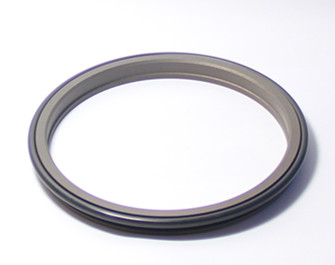

DPR
- Code:DPR
- Speed≤(m/s)：5
- Temp.Range℃:-30/+200
- Material:PTFE/NBR/FKM
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Presses, Injection moulding machines, Steel hydraulic, Mills
Products.
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
-30…+200 | 5 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|
| Material | Standard or can fit the groove | |||
| O ring | slide ring | PT2 | ||
|
Standard |
NBR |
PTFE-Bronze |
||
|
Special l(on request) |
FKM |
PTFE-carbon |
||
Order Example for standard version:
Diameter d=100mm DPR 100*122.2*6.3
Order Code DPR 100*122.2*6.3

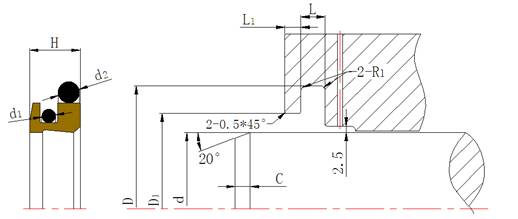

Installation Dimension table based on Metric Size
| d h9 | D H9 | H | L+0.2 | L1 | D1 | d1 | d2 | R1≤ | C≥ |
| 100~295 | d+22.2 | 13.5 | 6.3 | 4.2 | d+10.7 | 3.55 | 5.3 | 1.2 | 5 |
| 300~560 | d+33 | 18.4 | 8.1 | 6.3 | d+15.1 | 5.3 | 7 | 1.2 | 5 |
| 700~1500 | d+36.5 | 19.8 | 9.5 | 6.3 | d+15.1 | 5.3 | 8.6 | 2 | 7 |
