Product Series

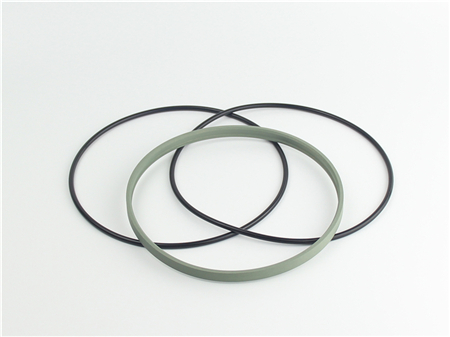

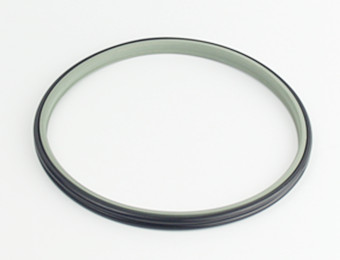

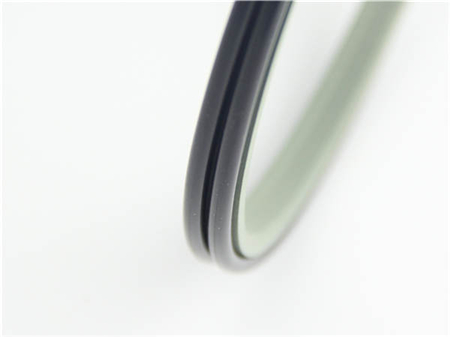

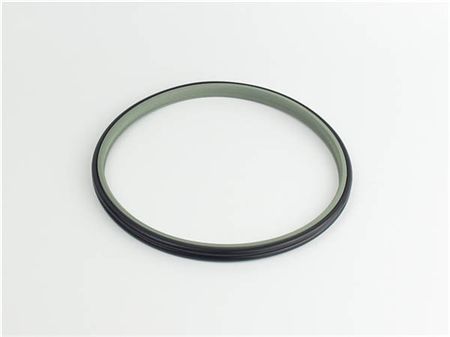

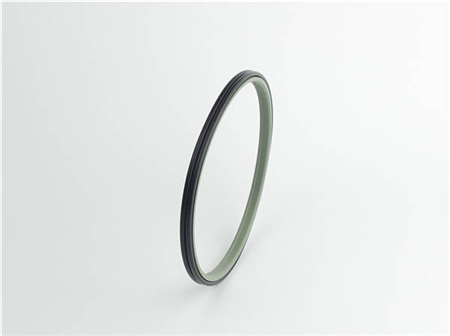

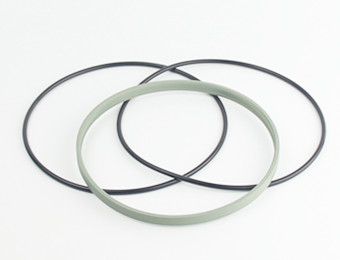

DPE
- Code:DPE
- Speed≤(m/s)：5
- Temp.Range℃:-30/+200
- Material:PTFE/Bronze+NBR
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Large cylinders, Presses, Injection moulding machines, Agricultural machinery, Mills
Scraper seals, DSH Seals product code. DPE Seals.
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
tandard |
-30…+200 | 5 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|
| Material | Standard or can fit the groove | |||
| O ring | slide ring | PT1 | ||
|
Standard |
NBR |
PTFE-Bronze |
||
|
Special l(on request) |
FKM |
PTFE-carbon |
||
Order Example for standard version:
Diameter d=100mm
Order Code DPE 100*112*8.1

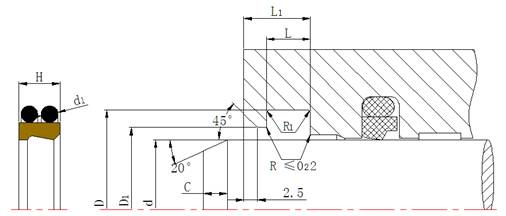

Installation Dimension table based on Metric Size
| d h9 | D H9 | H | L+0.2 | L1 | D1 | d1 | R1≤ | C≥ |
| 20~36 | d+7.6 | 4 | 4.2 | 8.2 | d+1 | 1.8 | 0.4 | 2 |
| 40~65 | d+8.8 | 6 | 6.3 | 10.3 | d+1.5 | 2.65 | 1.2 | 5 |
| 70~135 | d+12.2 | 7.7 | 8.1 | 12.1 | d+2 | 3.55 | 2 | 7 |
| 140~400 | d+16 | 11 | 11.5 | 15.5 | d+2 | 5.3 | 2 | 7 |
| 400~650 | d+24 | 14.8 | 15.5 | 19.5 | d+3 | 7 | 2 | 7.5 |
| 675~910 | d+27 | 17.2 | 18 | 22 | d+3 | 8.4 | 2 | 7.5 |
