Product Series

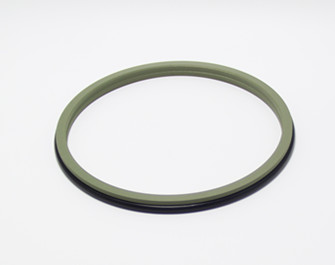

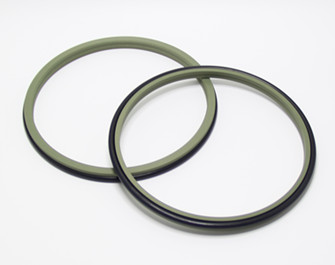

DSZL
- Code:DSZL
- Speed≤(m/s)：15
- Temp.Range℃:-45/+200
- Material:PTFE/Bronze+NBR
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Ceramic machine, Heavy duty cylinders Injection, moulding machines,Presses, Steel hydraulic
Products.
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
-45…+200 | 15 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|
| Material | Standard or can fit the groove | |||
| O ring | slide ring | WE30/31/32/33/34/35 | ||
|
Standard |
NBR |
PTFE-Bronze |
ES56130/31/32/33/34/35 | |
|
Special (on request) |
FKM |
PTFE-carbon |
||
Order Example for standard version:
Diameter d=100mm
Order Code DSZL 100*108.8*6

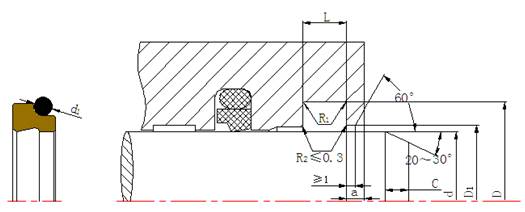

Installation Dimension table based on Metric Size
| d h9 | D H9 | L3+0.2 | D1 h11 | d1 | a | R1≤ | C≥ |
| 6~10 | d+4.8 | 3.7 | d+1.5 | 1.8 | 2 | 0.4 | 2 |
| 12~63 | d+6.8 | 5 | d+1.5 | 2.65 | 2 | 0.4 | 2 |
| 65~250 | d+8.8 | 6 | d+2 | 3.55 | 3 | 0.8 | 3 |
| 260~400 | d+12.2 | 8.4 | d+2 | 5.3 | 4 | 0.8 | 3 |
| 440~630 | d+16 | 11 | d+2 | 7 | 4 | 1.2 | 5 |
| 680~1200 | d+20 | 14 | d+2.5 | 8.6 | 5 | 1.6 | 7.5 |
