Product Series

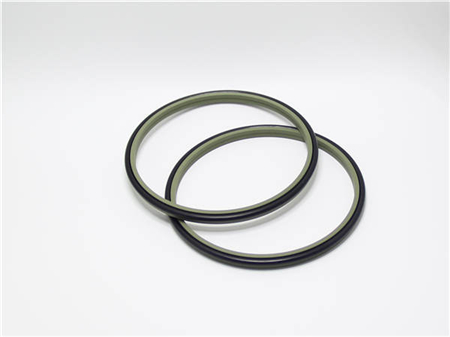

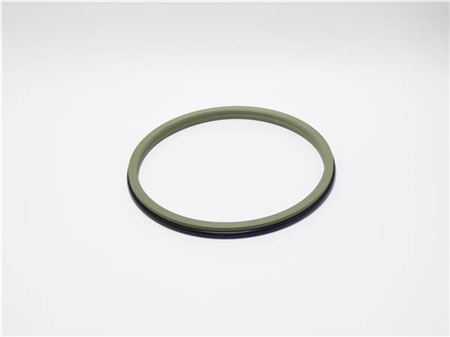

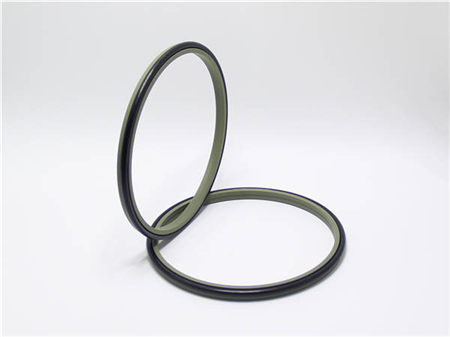

DSZ
- Code:DSZ
- Speed≤(m/s)：15
- Temp.Range℃:-45/+200
- Material:PTFE/Bronze+NBR
- Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
- Application:Mobile hydraulics, Standard cylinders, Machine tools, Injection moulding machines, Presses
Products.
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
-45…+200 | 15 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|
| Material | Standard or can fit the groove | |||
| O ring | slide ring | WE50/51/52/53/54/55 | ||
|
Standard |
NBR |
PTFE-Bronze |
ES56150/51/52/53/54/55 | |
|
Special (on request) |
FKM |
PTFE-carbon |
||
Order Example for standard version:
Diameter d=100mm
Order Code DSZ100*112.2*8.1

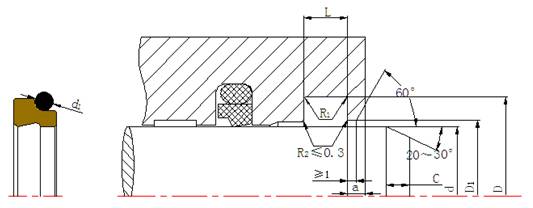

Installation Dimension table based on Metric Size
| d h9 | D H9 | L3+0.2 | D1 h11 | d1 | a | R1≤ | C≥ |
| 20~36 | d+7.6 | 4.2 | d+1.5 | 2.65 | 3 | 0.4 | 2 |
| 40~65 | d+8.8 | 6.3 | d+1.5 | 2.65 | 3 | 0.4 | 2 |
| 70~135 | d+12.2 | 8.1 | d+2 | 3.55 | 4 | 0.8 | 3 |
| 140~380 | d+16 | 9.5 | d+2.5 | 5.3 | 5 | 1.2 | 5 |
| 400~600 | d+24 | 14 | d+2.5 | 7 | 8 | 1.6 | 7.5 |
| 650~1200 | d+27.3 | 16 | d+2.5 | 8.4 | 10 | 1.6 | 8 |
