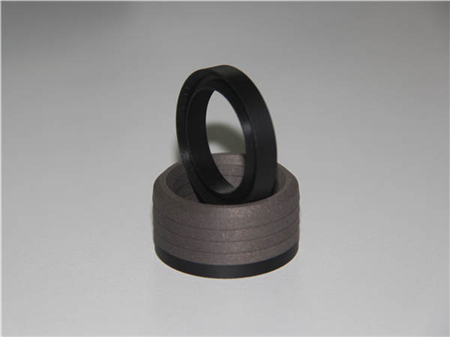

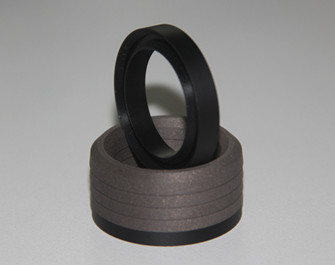

DVR
- Code:DVR
- Pressure≤(MPa)：40
- Speed≤(m/s)：0.5
- Temp.Range℃:-25/+200
- Material:NBR Fabric\FKM Fabric
- Medium:Mineral Oil,HFC Water Glycol,HFA 5/95 Water base fluid Water
- Application:Steel hydraulic, Ceramic machine, Heavy duty cylinders, Presses Mills
Products.
| Technical Data | ||||
|
Pressure |
Max Gap E |
Temperature(℃) |
Speed(m/s) |
Medium |
| 160bar | E≤0.8mm | -45～110 | ≤0.5 | Mineral Oil |
| 250bar | E≤0.6mm | -30～60 |
HFC Water Glycol |
|
| 400bar | E≤0.4mm | |||
| 700bar | E≤0.2mm | +5～60 |
HFA 5/95 Water base fluid Water |
|

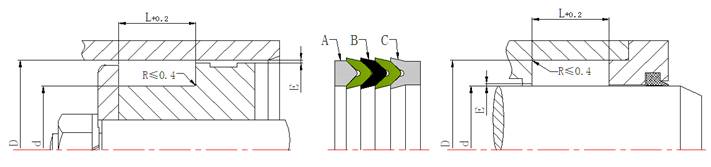

| Matetial | |||
| A | B | C | |
| Standard Design | NBR Fabric\FKM Fabric | ||

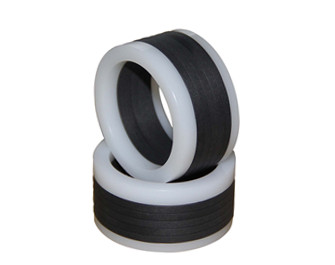

| Special(on request) | POM/PTFE/PA | PTFE/UHMW-PE | POM/PTFE/PA |
Order Example for standard version:
D=120mm d=100 H=32
Order Code DVR100*120*32
| d f8 | D H10 | L +0.2 |
| 10～39.9 | d+10 | 16 |
| 40～74.9 | d+15 | 25 |
| 75～149.9 | d+20 | 32 |
| 150～199.9 | d+25 | 40 |
| 200～299.9 | d+30 | 50 |
| 300～599.9 | d40 | 63 |
| 600～999.9 | d+40 | 80 |
| 1000～1500 | d+50 | 100 |
