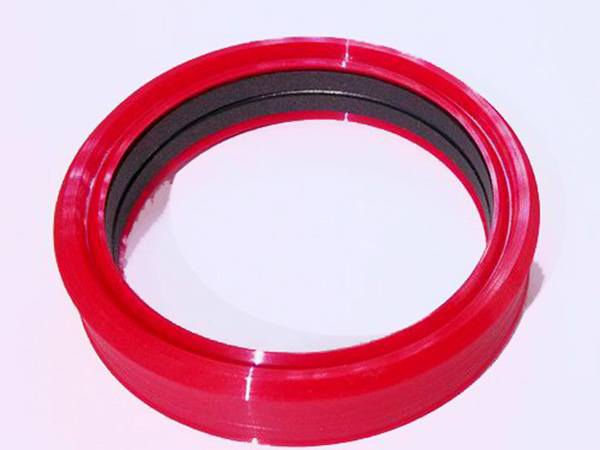

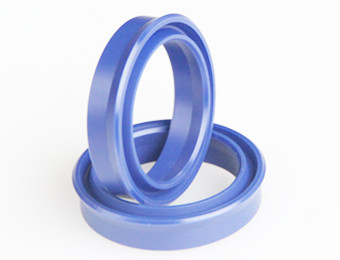

DUP
- Code:DUP
- Pressure≤(MPa)：40
- Speed≤(m/s)：0.5
- Temp.Range℃:-30/+80
- Material:PU
- Medium:Mineral oil based hydraulic fluids,barely flammable hydraulic fluids, water,air and others.
- Application:Standard cylinders, Machine tools, Injection moulding machines, Presses Lift platforms
Piston Seals
DSH Seals product code, DUP Seals
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
40 | -35…+80 | 0.5 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
| Material | Standard and or can fit the groove | ||
|
Standard |
PU(Shore90-95A) | ODI OSI OUIS PUA | |
| Pressure | 160bar | 250bar | 400bar |
| Max Gap E | E≤0.6mm | E≤0.5mm | E≤0.4mm |
Order Example for standard version:
Bore Diameter D=100mm Groove Diameter d=80 Seal Width H=12
Order Code DUP 100*80*12

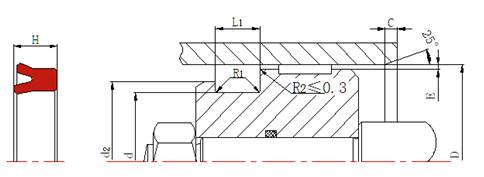

Installation Dimension table based on Metric Size
| D H9 | d h9 | L1+0.2 | H | R1≤ | C≥ |
| 50~100 | D-10 | 5.5 | 5 | 0.2 | 3 |
| 50~150 | D-10 | 8 | 7 | 0.2 | 3 |
| 20~50 | D-10 | 9 | 8 | 0.2 | 3 |
| 30~100 | D-10 | 11 | 10 | 0.2 | 3 |
| 20~150 | D-15 | 11 | 10 | 0.4 | 3.5 |
| 50~100 | D-20 | 11 | 10 | 0.8 | 6.5 |
| 50~100 | D-10 | 13 | 12 | 0.2 | 3 |
| 50~150 | D-15 | 13 | 12 | 0.4 | 3.5 |
| 20~200 | D-20 | 13 | 12 | 0.8 | 6.5 |
| 50~150 | D-10 | 15 | 14 | 0.2 | 3 |
| 50~200 | D-20 | 15 | 14 | 0.8 | 6.5 |
| 50~200 | D-20 | 16 | 15 | 0.8 | 6.5 |
