Product Series

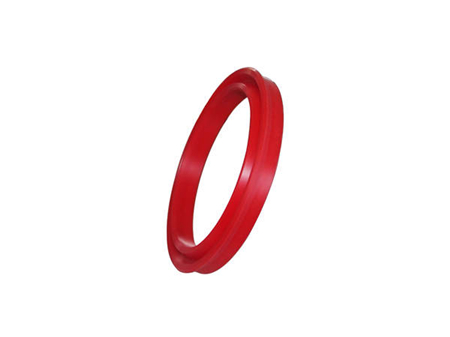

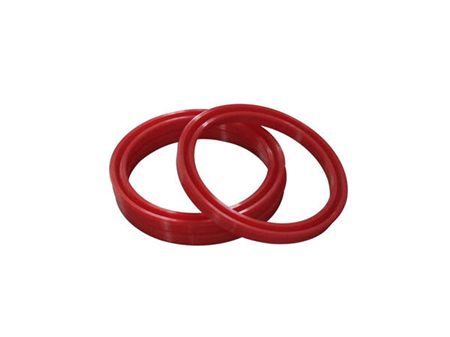

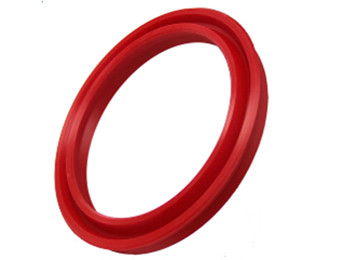

YxD
- Code:YxD
- Pressure≤(MPa)：40
- Speed≤(m/s)：1
- Temp.Range℃:-35/+120
- Material:PU
- Medium:Mineral oil based hydraulic fluids,barely flammable hydraulic fluids, water,air and others.
- Application:Standard cylinders, Machine tools, Injection moulding machines, Presses
Piston Seals,
DSH Seals product code, YxD Seals
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
tandard |
40 | -35…+120 | 1 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
| Material | Standard and or can fit the groove | ||
|
Standard |
PU(Shore90-95A) | JB/ZQ4264GY2 | |
| Pressure | 160bar | 250bar | 400bar |
| Max Gap E | E≤0.6mm | E≤0.5mm | E≤0.4mm |
Order Example for standard version:
Diameter D=100mm
Order Code YxD 100*88*14

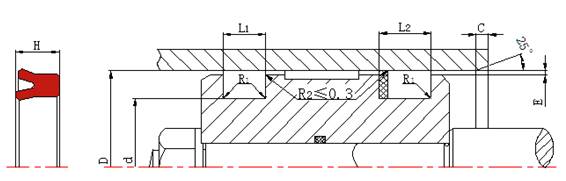

Installation Dimension table based on Metric Size
| D H9 | d h9 | H | L1 +0.2 | L2 +0.2 | R1≤ | C≥ |
| 20~28 | D-6 | 8 | 8.5 | 11.5 | 0.2 | 3 |
| 30~55 | D-8 | 10 | 11 | 12.5 | 0.2 | 3 |
| 55~160 | D-12 | 14 | 15 | 17 | 0.4 | 3.5 |
| 105~300 | D-16 | 18 | 19 | 21.5 | 0.8 | 5 |
| 320~650 | D-24 | 24 | 26 | 29 | 0.8 | 6.5 |
