Product Series
DMKES
- Code:DMKES
- Pressure≤(MPa)：40
- Speed≤(m/s)：5
- Temp.Range℃:-30/+100
- Material:PTFE+NBR
- Medium:Mineral oil based hydraulic fluids,barely flammable hydraulic fluids, water,air and others.
- Application:Ceramic machine, Heavy duty cylinders, Injection moulding machines, Presses, Steel hydraulic
Piston seals,
DSH Seals product code, DMKES.
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
tandard |
40 | -30…+100 | 5 |
Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others. |
|
Material |
Standard and or can fit the groove |
|||
|
elastic ring |
Slide ring |
OMK-S | ||
|
Standard |
NBR/ PU |
PTFE-Bronze |
||
|
Special (on request) |
FKM |
PTFE-Carbon |
||
|
Pressure |
160bar | 250bar | 400bar |
|
Max Gap E |
E≤0.6mm | E≤0.4mm | E≤0.2mm |
Order Example for standard version:
Diameter D=100mm
Order Code DGDA 100*80*10

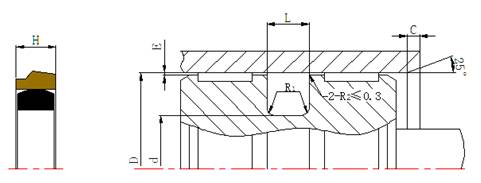

Installation Dimension table based on Metric Size
| D H9 | d h9 | L +0.2 | H | R1≤ | C≥ |
| 100~140 | D-20 | 10 | 9.4 | 1.6 | 7.5 |
| 160~210 | D-25 | 12.5 | 11.7 | 1.6 | 8 |
| 260~380 | D-30 | 15 | 14 | 2 | 8.5 |
| 410~740 | D-35 | 17.5 | 16.4 | 2 | 8.5 |
| 750~1000 | D-40 | 20 | 18.7 | 2.5 | 9 |
