Product Series

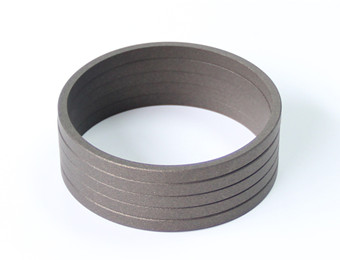

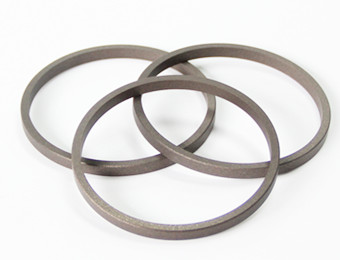

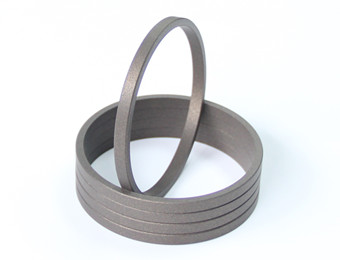

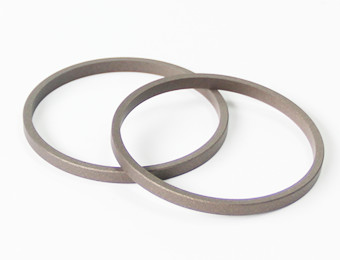

DSP
- Code:DSP
- Pressure≤(MPa)：60
- Speed≤(m/s)：15
- Temp.Range℃:-30/+200
- Material:PTFE/Bonze+NBR
- Medium:Mineral oil based hydraulic fluids,barely flammable hydraulic fluids, water,air and others.
- Application:Mobile hydraulics, Standard cylinders, Machine tools, Injection moulding machines, Presses

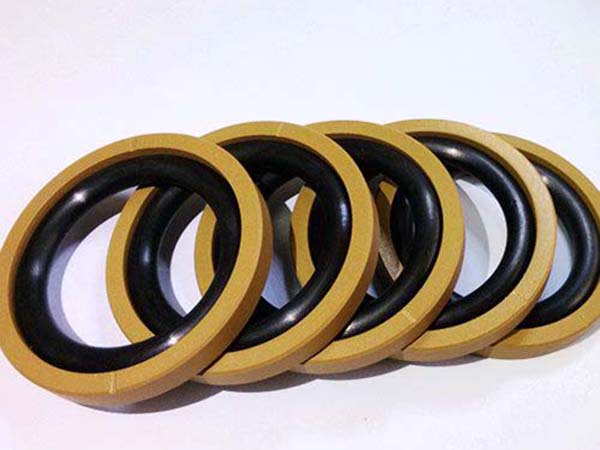

Piston Seals
DSH Seals product code, DSP
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
60 | -30…+200 | 15 |
Mineral oil based hydraulic fluids,barely flammable hydraulic fluids, water,air and others. |
| Material | ||
| O ring | slide ring | |
|
Standard |
NBR |
PTFE-Bronze |
|
Special(on request) |
FKM |
PTFE-Carbon |
| Pressure | 160bar | 200bar | 400bar |
| Max Gap E | E≤0.6mm | E≤0.4mm | E≤0.2mm |
Order Example for standard version:
Diameter D=100mm
Order Code DSP100*85*6.8

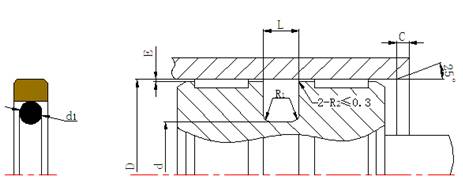

Installation Dimension table based on Metric Size
| D H9 | d h9 | L +0.2 | d1 | C≥ | R1≤ |
| 18~36 | D-8 | 3.2 | 2.65 | 2 | 0.4 |
| 40~63 | D-10 | 4.2 | 3.55 | 3 | 0.8 |
| 63~195 | D-15 | 6.8 | 5.7 | 5 | 1.2 |
| 200~300 | D-20 | 8.1 | 7 | 7.5 | 1.6 |
| 310~400 | D-25 | 9.5 | 8.6 | 8 | 1.6 |
