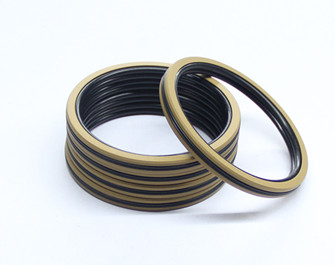

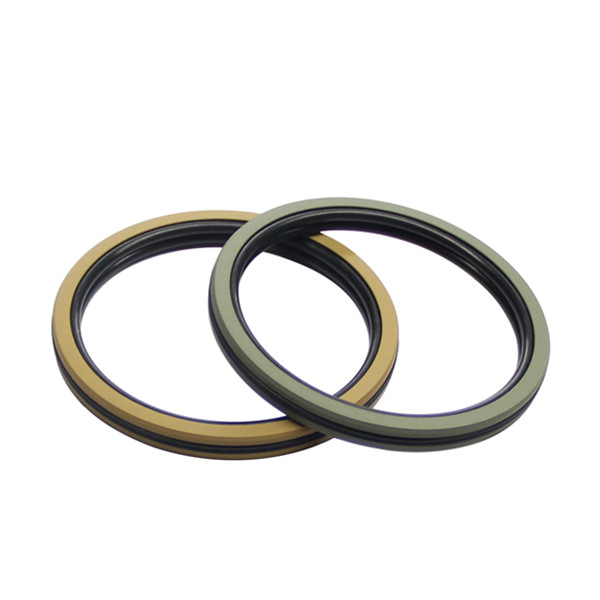

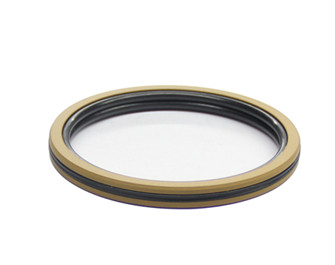

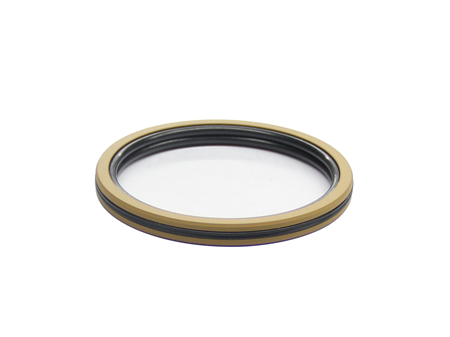

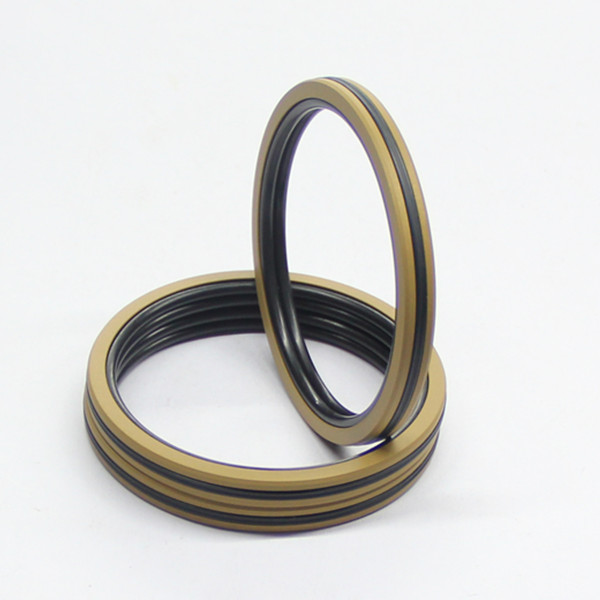

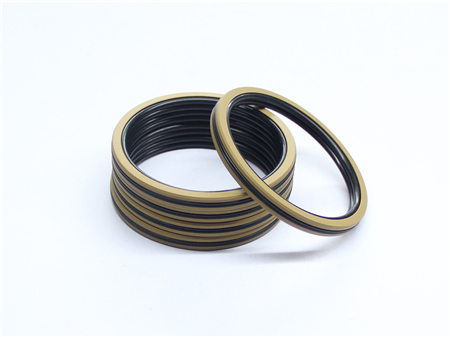

DQF
- Code:DQF
- Pressure≤(MPa)：60
- Speed≤(m/s)：3
- Temp.Range℃:-45/200
- Material:PTFE/Bronze+NBR
- Medium:Mineral oil based hydraulic fluids,barely flammable hydraulic fluids, water,air and others.
- Application:Mobile hydraulics, Holding cylinders, Piston accumulators
Products.
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
60 | -45…+200 | 3 |
Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water,air and others. |
| Material | Standard or can fit the groove | |||
| O ring & X ring | slide ring | PQ/01/02/03/04 | ||
| Standard | NBR |
PTFE-Bronze |
||
|
Special (on request) |
FKM |
PTFE-Carbon |
||
| 工作压力Pressure | 160bar | 200bar | 400bar |
| 最大挤出间隙Max Gap E | E≤0.6mm | E≤0.4mm | E≤0.2mm |
Order Example for standard version:
Diameter D=100mm
Order Code DQF100*87*8.3

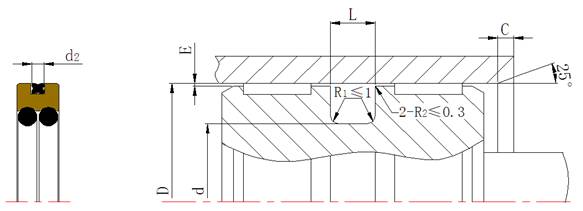

Installation Dimension table based on Metric Size
| D H9 | d h9 | L +0.2 | d1 | d2 | C≥ |
| 40~70 | D-10 | 6.3 | 2.62 | 1.78 | 4 |
| 80~130 | D-13 | 8.3 | 3.53 | 2.62 | 4 |
| 135~450 | D-18 | 12.3 | 5.33 | 3.53 | 6 |
| 480~700 | D-31 | 16.3 | 6.99 | 5.33 | 7.5 |
