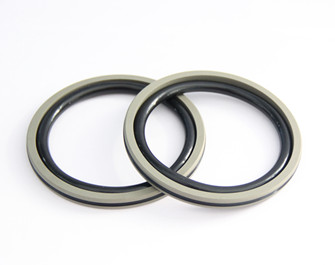

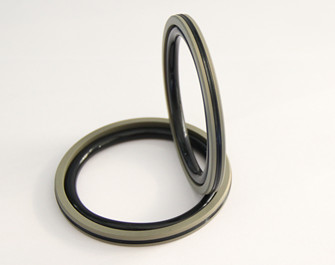

DAQ
- Code:DAQ
- Pressure≤(MPa)：40
- Speed≤(m/s)：2
- Temp.Range℃:-45/+200
- Material:PTFE/Bronze+NBR
- Medium:Mineral oil based hydraulic fluids,barely flammable hydraulic fluids, water,air and others.
- Application:Standard cylinders, Piston accumulators, Presses
Products.
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
40 | -45…+200 | 2 |
Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water,air and others. |
| Material | Standard or can fit the groove | |||
| O ring & X ring | slide ring | ISO 7425/1 | ||
| Standard | NBR |
PTFE-Bronze |
GB/T 15242.3 | |
|
Special (on request) |
FKM |
PTFE-Carbon |
PQ12/22/32/52,PQ14/24 | |
| Pressure | 160bar | 200bar | 400bar |
| Max Gap E | E≤0.6mm | E≤0.4mm | E≤0.3mm |
Order Example for standard version:
Diameter D=100mm
Order Code: DAQ 100*79*8.1

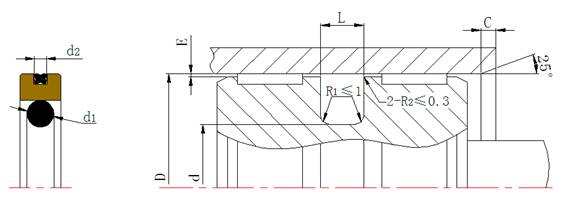

Installation Dimension table based on Metric Size
| D H9 | d h9 | L +0.2 | d1 | d2 | C≥ |
| 16~75 | D-11 | 4.2 | 3.55 | 1.78 | 4 |
| 50~130 | D-15.5 | 6.3 | 5.3 | 1.78 | 4 |
| 80~250 | D-21 | 8.1 | 7 | 2.62 | 6 |
| 135~250 | D-24.5 | 8.1 | 7 | 2.62 | 6 |
| 280~450 | D-28 | 9.5 | 8.4 | 3.53 | 7.5 |
| 480~700 | D-35 | 11.5 | 10 | 5.33 | 8 |
