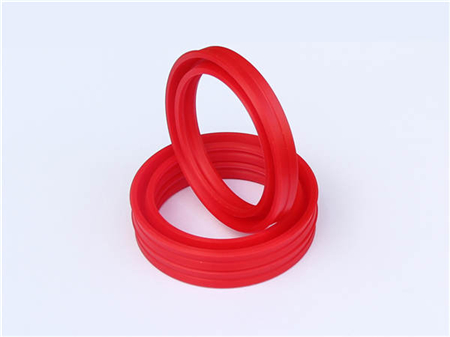

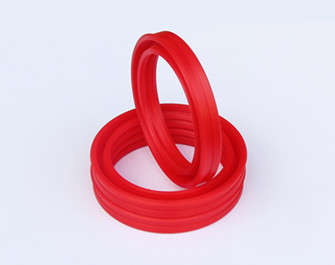

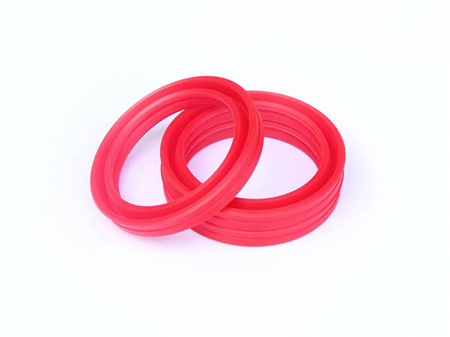

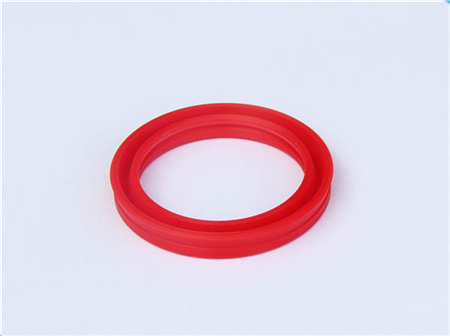

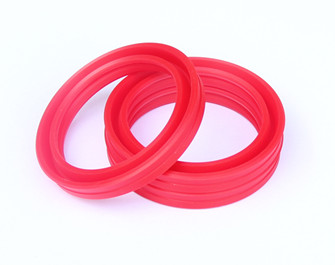

Yxd
- Code:Yxd
- Pressure≤(MPa)：40
- Speed≤(m/s)：1
- Temp.Range℃:-35/+120
- Material:PU/FKM
- Medium:Mineral oil based hydraulic fluids,barely flammable hydraulic fluids, water,air and others.
- Application:Mobile hydraulics,Standard cylinders Machine tools, Injection moulding machines, Presses
Products.
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
40 | -35…+100 | 1 |
Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water,air and others. |
| Material |
Standard or can fit the groove |
||
| Standard | PU(shore90-95A) | JB/ZQ 4265 | |
| Special(on request) | FKM | GYI | |
| Pressure | 160bar | 200bar | 400bar |
| Max Gap E | E≤0.6mm | E≤0.4mm | E≤0.4mm |
Order Example for standard version:
Diameter D=100mm
Order Code Yxd100*112*14

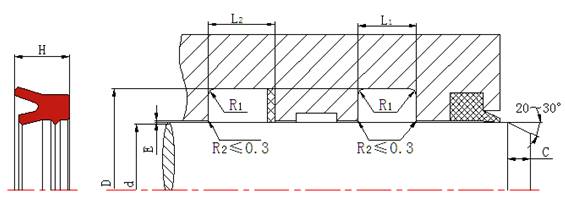

Installation Dimension table based on Metric Size
| d h9 | D H9 | H | L1 +0.2 | L2 +0.2 | C≥ | R1≤ |
| 20~28 | d+6 | 8 | 8.5 | 11 | 0.4 | 3 |
| 16~55 | d+8 | 10 | 11 | 13 | 0.8 | 3.5 |
| 55~160 | d+12 | 14 | 15 | 17 | 1.2 | 5 |
| 100~300 | d+16 | 18 | 19 | 22 | 1.2 | 6.5 |
| 320~690 | d+24 | 24 | 26 | 29 | 1.6 | 7 |
