Product Series

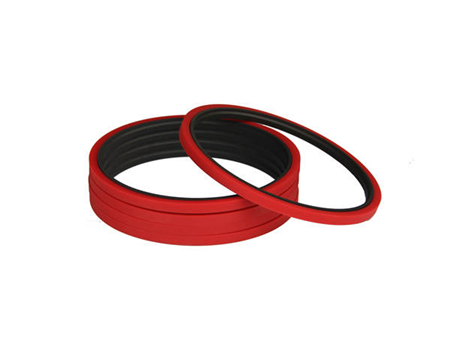

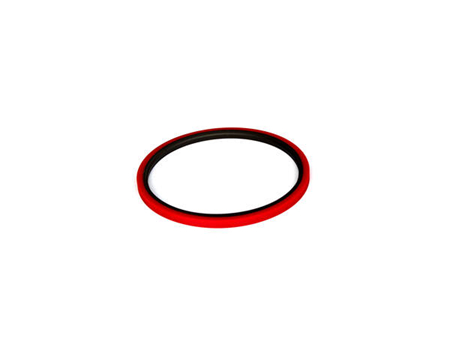

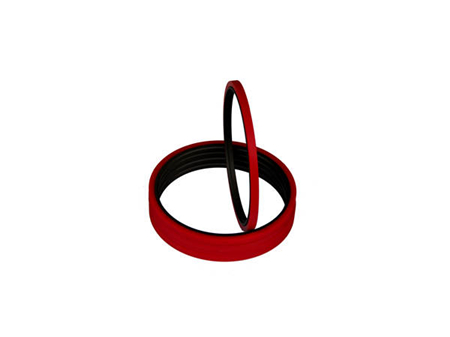

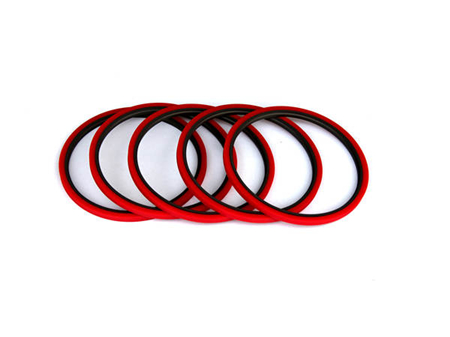

DMSS
- Code:DMSS
- Pressure≤(MPa)：40
- Speed≤(m/s)：5
- Temp.Range℃:-30/+100
- Material:PTFE+NBR
- Medium:Mineral oil based hydraulic fluids,barely flammable hydraulic fluids, water, air and others.
- Application:Mobile hydraulics, Heavy duty cylinders, Machine tools, Presses
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
Standard |
40 | -35…+100 | 5 |
Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water,air and others. |
| Material |
Standard or can fit the groove |
||||
| Elastic ring | Slide ring | OMSS | |||
| Standard | NBR/PU |
PTFE-Bronze |
|||
|
Special (on request) |
FKM |
PTFE-carbon |
|||
| Pressure | 160bar | 200bar | 400bar |
| Max Gap E | E≤0.6mm | E≤0.4mm | E≤0.2mm |
Order Example for standard version:
Diameter D=100mm
Order Code DMSS100*120*10

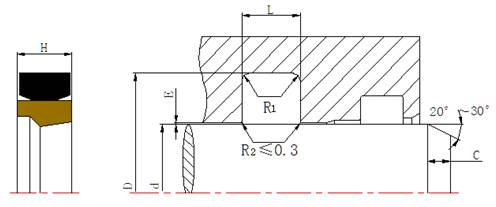

Installation Dimension table based on Metric Size
| d h9 | D H9 | L +0.2 | H | C≥ | R1≤ |
| 20~36 | d+10 | 5 | 4.7 | 3 | 0.8 |
| 40~65 | d+15 | 7.5 | 7 | 5 | 1.2 |
| 70~200 | d+20 | 10 | 9.4 | 7.5 | 1.6 |
| 210~300 | d+25 | 12.5 | 11.7 | 8 | 1.6 |
| 310~550 | d+30 | 15 | 14 | 8.5 | 2 |
| 510~690 | d+35 | 17.5 | 16.4 | 9 | 2 |
| 700~1070 | d+40 | 20 | 18.7 | 9 | 2 |
