Product Series

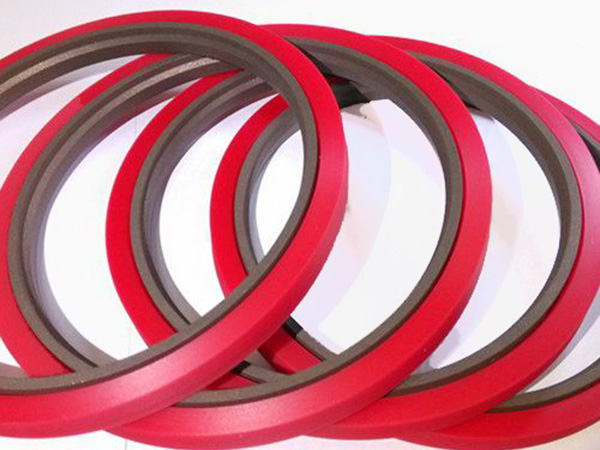

DGDI
- Code:DGDI
- Pressure≤(MPa)：45
- Speed≤(m/s)：0.5
- Temp.Range℃:-35/+200
- Material:PTFE+NBR+POM
- Medium:standard hydraulic oils
- Application:Mobile hydraulics, Heavy duty cylinders, Machine tools Presses
| Technical Data | ||||
|
Pressure[Mpa] |
Temperature(℃) |
Sliding speed(m/s) |
Medium |
|
|
tandard |
45 | -35…+100 | 1 | standard hydraulic oils |
| Material |
Standard or can fit the groove |
|||||
| Elastic ring | Slide ring | Support Ring | GGDI | |||
| Standard | PU |
PTFE-Bronze |
POM | |||
|
Special (on request) |
NBR,FKM EPDM FMVQ,MVQ |
PTFE-carbon |
PTFE | |||
Order Example for standard version:
Diameter D=100mm
Order Code DGDI100*113.8*7.5

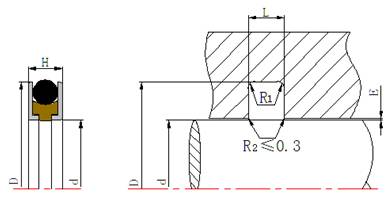

Installation Dimension table based on Metric Size
| d e8 | D H9 | b1 D10 | H | R1≤ | C≥ |
| 22~36 | d+7.2 | 4 | 3.5 | 0.4 | 6 |
| 40~75 | d+10 | 5 | 4.5 | 0.8 | 6 |
| 80~100 | d+13.8 | 7.5 | 7 | 0.8 | 6 |
| 105~250 | d+20 | 10 | 9.5 | 1.2 | 10 |
| 260~600 | d+30 | 15 | 14.5 | 1.5 | 15 |
| 630~1000 | d+40 | 20 | 19.5 | 2 | 15 |
