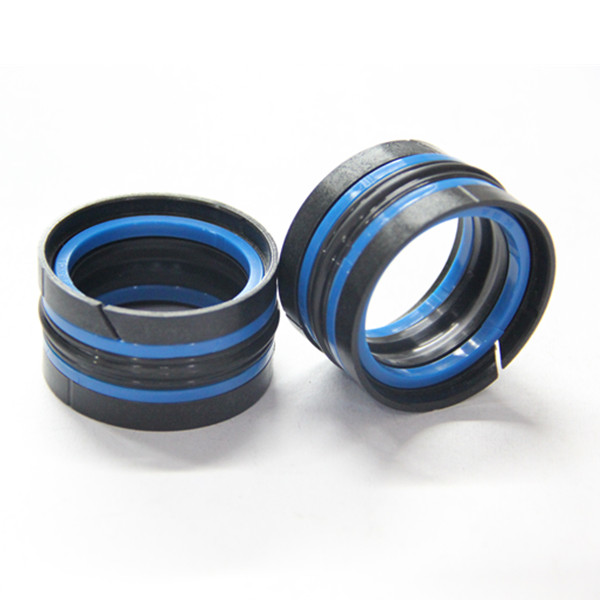

TPM/NBR/POM Hydraulic Piston Compact Seals, KDAS Seals

Update:2016-12-26

General introduction of TPM/NBR/POM Hydraulic Piston Compact Seals

DSH Seals product code, KDAS

KDAS Seals consist of three parts in different materials, elastomer, guide rings and support rings.

The elastomer part has a special cross section shape, it it a dynamic seal, three lips tightly contact the cylinder wall. The middle lip relatively plays the main role as sealing, the other twos as auxiliary sealing effect. The bottom parts tightly contact the piston groove bottom, the contact surface is a bit big.

The support was assembly close to the elastomer part, play positioning role, to support the elastomer part and in avoid to prevent radial sealing gap.

The guide ring work as guidance and absorption of axial force, it help elastomer part to release pressure.

KDAS Seals material from inside to outside, elastomer ring, support rings, guide rings, the hardness will increase.

Materials of TPM/NBR/POM Hydraulic Piston Compact Seals

Elastomer part, NBR

Support rings, Nylon or Polyurethane (TPM)

Guide rings, Nylon or POM

Working condition of TPM/NBR/POM Hydraulic Piston Compact Seals

Temperature,  -30 ℃ ~  + 100 ℃

Pressure,     35 MPa

Speed,       0.5 m/s

Medium,     oil - based hydraulic oil, environmental protection hydraulic oil

Application of TPM/NBR/POM Hydraulic Piston Compact Seals Excavators, cranes, agricul

tural machinery, loader, hydraulic gates and so on.

DSH Seals offer KDAS Seals in various sizes and materials, FREE SAMPLES will be sent if you want to test our quality. Contact DSH Seals teams, 7*24 hours service for you.
